Features
  • Food grade and BPA free (US + CA approved)
  • Increase safety and traction by distributing weight over the rear axle
  • Our Fresh Water Fittings Kit eliminates the need for multiple trips to the plumbing store.
Sale price $442.00
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon
Save valuable space with our Ford Transit Wheel Well Water Tank. Extra storage is key when it comes to life on the road, and that is where this nifty freshwater tank comes in. Designed exclusively with efficiency in mind, these water tanks utilize that awkward area around your wheel well that often gets wasted The tank also acts as additional soundproofing when it comes to road noise.

Holding 27 gallons of freshwater goodness, these water tanks are custom-designed to fit around the Transit’s wheel well.

If you're looking for more volume, check out our 29 Gallon Wheel Well Water Tank!

Need a grey water tank? Bundle your freshwater wheel well tank with our 17 Gallon Transit Undermount Tank! The undermount tank fits snugly under the passenger side of your Transit’s framed undercarriage; the perfect solution for your off-grid water requirements.


Key Features & Benefits:
  • Space Saving - A unique way to make efficient use of that awkward wheel well area and shape.
  • Perfectly Shaped - Not only do these tanks mold to the shape of your wheel well but the top and outside are also squared off to account for further building. Last we checked, it’s easier to build a square box than a round one.
  • Build Options - Option to choose a passenger or driver side tank - whichever wheel well works best for your build. Need more water? Choose both and place one on either side of your van for mega-volume!
  • Distributes Weight - Adds weight over your rear axle to help increase traction if you get in a sticky spot. No more slips and skids, not to mention unwanted wheel wear, thanks to the perfect weight distribution of these tanks.
  • Sound Proofing - When it comes to road noise, these tanks step it up with added noise reduction around your wheel well.
  • BPA-Free and Food Grade Approved - Feel safe knowing these tanks are food grade CSA approved! Wash the dishes, have a shower, fill the dog bowl, and stay hydrated, while exploring in your van!
  • Fittings Kit Add-On Available - Save yourself the headache and multiple trips to the plumbing store when you bundle this tank with our Freshwater Fittings Kit!
  • Strapping Kit Add-On Available - Weather-resistant strapping crafted from heavy-duty 1/8" thick, 1 1/2" wide stainless-steel. Simple and secure!
  • Compatible - Pairs well with our 17 Gallon Transit Undermount Tank

Dimensions & Specifications:

Designed for the Ford Transit, all wheelbases.
Compatible as an interior water tank, for any van.

Tanks are made from linear low-density polyethylene.
Food grade CSA approved and BPA free - safe for freshwater use.

26.8 US Gallons / 101.4 Litres

44.5” x 13” x 19” (Length x Width x Height)

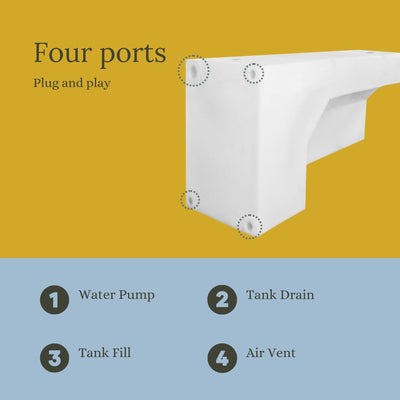

2 x 1 ¼" port (on top)
1 x 1 ¼" port (on rear end)
1 x ¾" port (on rear end)
2 x ½” ports (on rear end)
1 x ½” ports (on front end)

All ports are NPT female-threaded.

Tank can be placed on either the PASSENGER SIDE or DRIVER SIDE of the van.

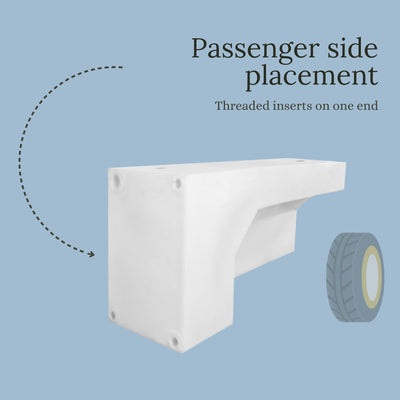

  • Passenger side tank sits 9” behind wheel well on passenger side / in front of the wheel well on driver’s side.

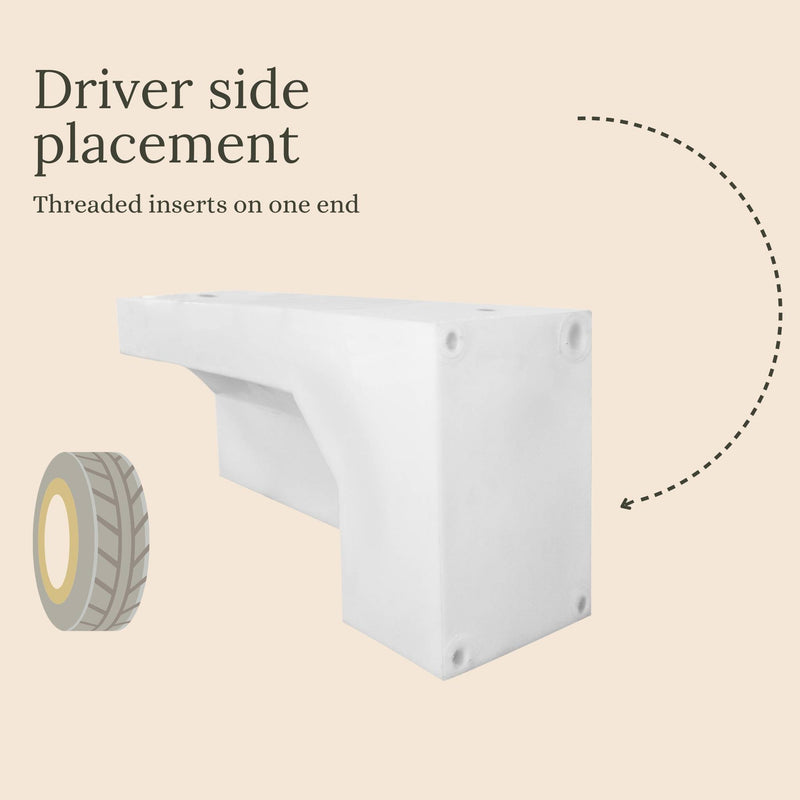

  • Driver side tank sits 9” behind wheel well on drivers side / in front of the wheel well on passenger side.

Fits around the wheel well with or without flooring installed in the van.

More Information:

Wheel Well & Undermount Water Tank FAQ Sheet

Full Details of the Grey Water Fittings Kit Add-On
Select this add-on with your tank purchase and save $$ vs buying separately!

Full Details of the Fresh Water Fittings Kit Add-On
Select this add-on with your tank purchase and save $$ vs buying separately!

Full Details of the Stainless-Steel Strapping Kit Add-On
Select this add-on with your tank purchase and save $$ vs buying separately!

Check out our Transit Undermount Water Tank (10 Gallon)

Check out our Transit Wheel Well Water Tank (29 Gallon)

Check out our Transit Dually Wheel Well Water Tank (32 Gallon)

Install Instructions:

Freshwater Fittings Kit Install Instruction
Grey Water Fittings Kit Install Instruction



Length x Width x Height 44.5” x 13” x 19”
Volume 26.8 US Gallons / 101.4 Litres

Length x Width x Height 44.5” x 13” x 19”
Volume 26.8 US Gallons / 101.4 Litres
Port (on top) 2 x 1 ¼"
Port (on rear end) 1 x 1 ¼"
Port (on rear end) 1 x ¾"
Ports (on rear end) 2 x ½”
Ports (on front end) 1 x ½”

Designed for the Ford Transit, all wheelbases. Compatible as an interior water tank for other vans if the cutout fits your wheel well.

Can I add fittings to my water tank?
We can't add any additional fittings to your tank as they are made in batches. The fittings are spin welded on requiring specialized equipment. There is likely a spin welder in your local area that can add additional fittings for you if needed.

What is the water tank wall thickness?
The standard wall thickness of our water tanks is approximately 3/16”.

Can you recommend a water level gauge?
The most common water level gauge is the KUS brand tank sensor.
