Summit Flex 12V Dual-Mount (Wall/Roof) Air Conditioner
Summit Flex 12V Dual-Mount (Wall/Roof) Air Conditioner

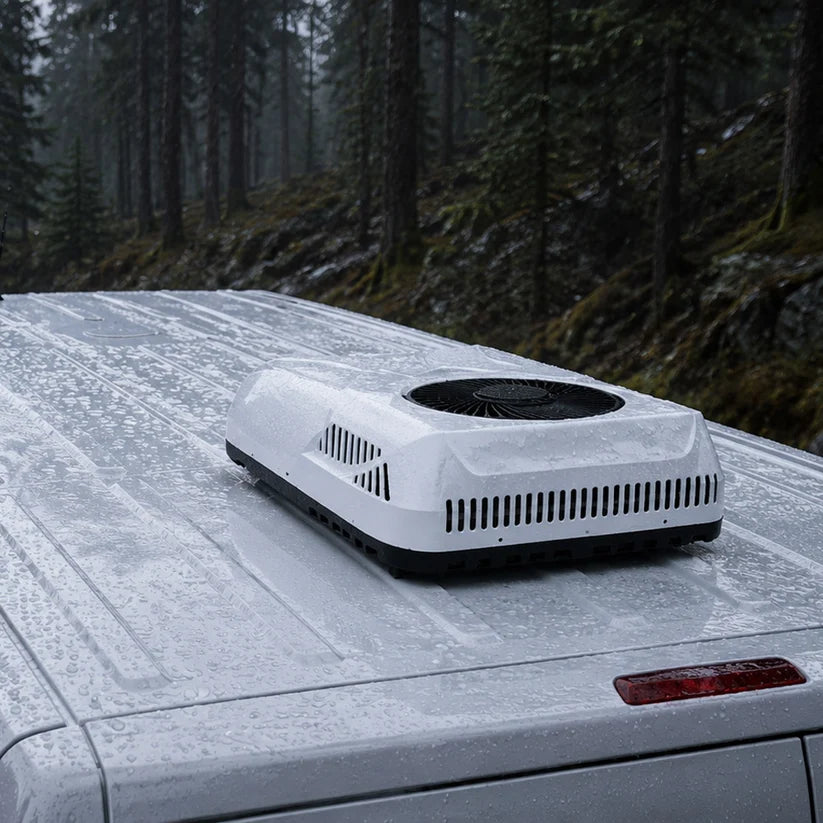

- Mount the Summit Flex horizontally on the roof or vertically on a wall or rear door to maximize space for solar panels
- 10,000 BTU cooling and 4,500 BTU heating capacity
- Comes pre-filled with refrigerant, ready for immediate use upon installation
Note: Only available in 12V with heater, White.
ALL-SEASON CLIMATE COMFORT ON THE ROAD
Designed for RVs, campers, trucks, and vans, the Summit Flex Dual-Mount Air Conditioner provides both powerful cooling and efficient heating for year-round comfort. Its versatile design allows installation on the roof or vertically on a wall or rear door, making it an ideal solution for a variety of vehicle layouts.
POWERFUL COOLING & HEATING
With a 10,000 BTU cooling capacity and 4,500 BTU heating capacity, the Summit Flex quickly adjusts your vehicle's interior temperature for comfortable conditions in both hot and cold weather.
VARIABLE-SPEED PERFORMANCE FOR OFF-GRID USE
The variable-speed scroll compressor automatically adjusts its output based on cooling demand. This helps maintain a consistent interior temperature while reducing unnecessary power consumption, making it well suited for battery-powered and off-grid applications.
FLEXIBLE ROOF OR WALL MOUNTING

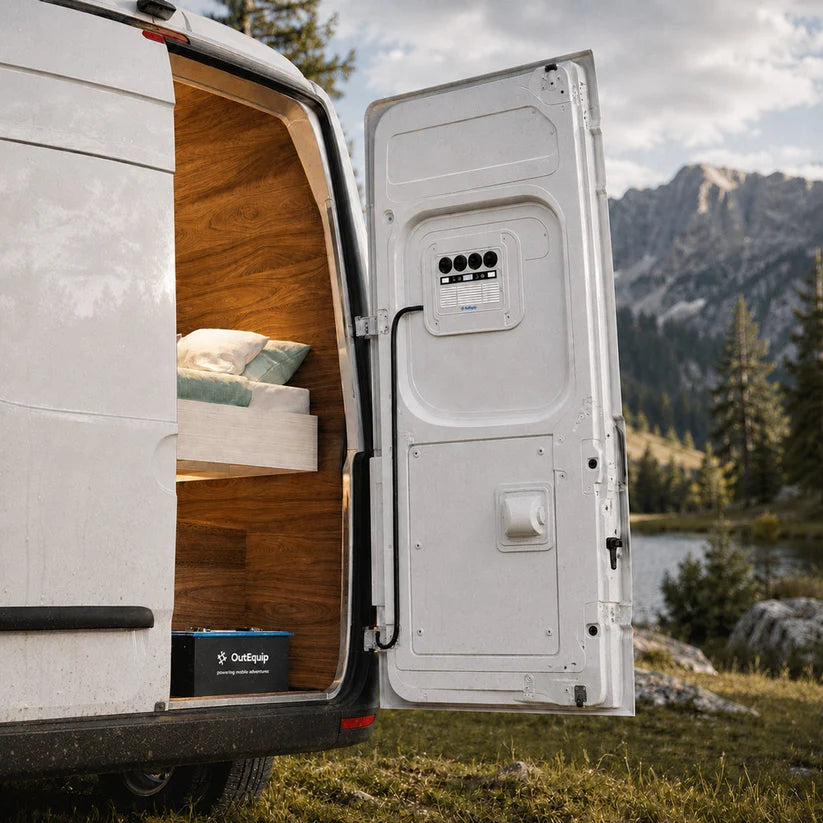

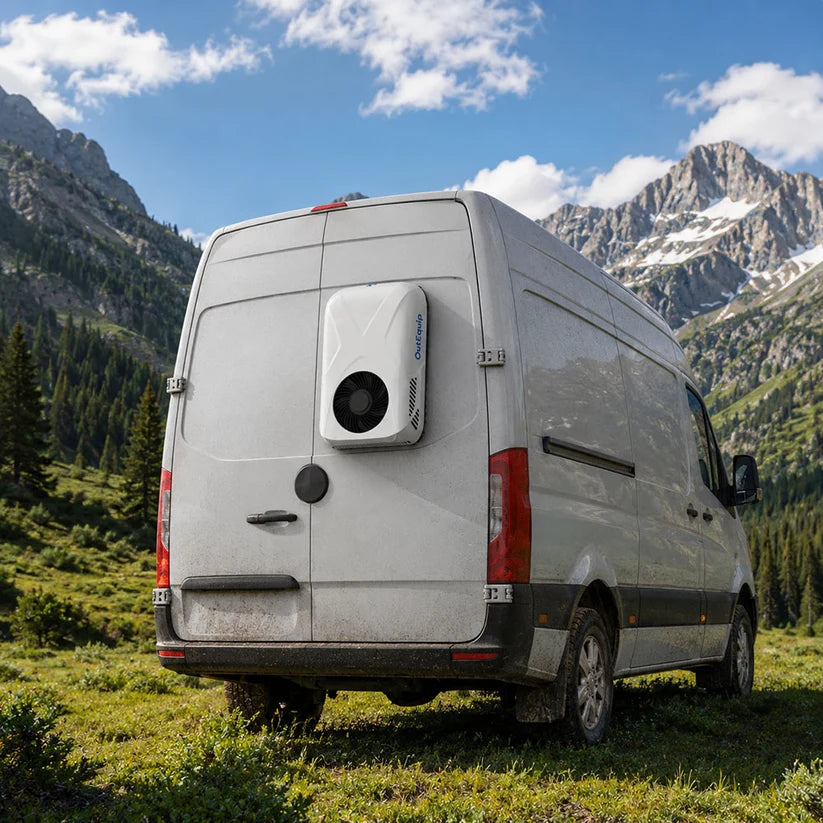

Install the Summit Flex horizontally on the roof or vertically on a wall, bulkhead, or rear door to suit your vehicle's configuration. The flexible mounting options can also help preserve valuable roof space for solar panels and other equipment.
ALL-IN-ONE SANDWICH DESIGN

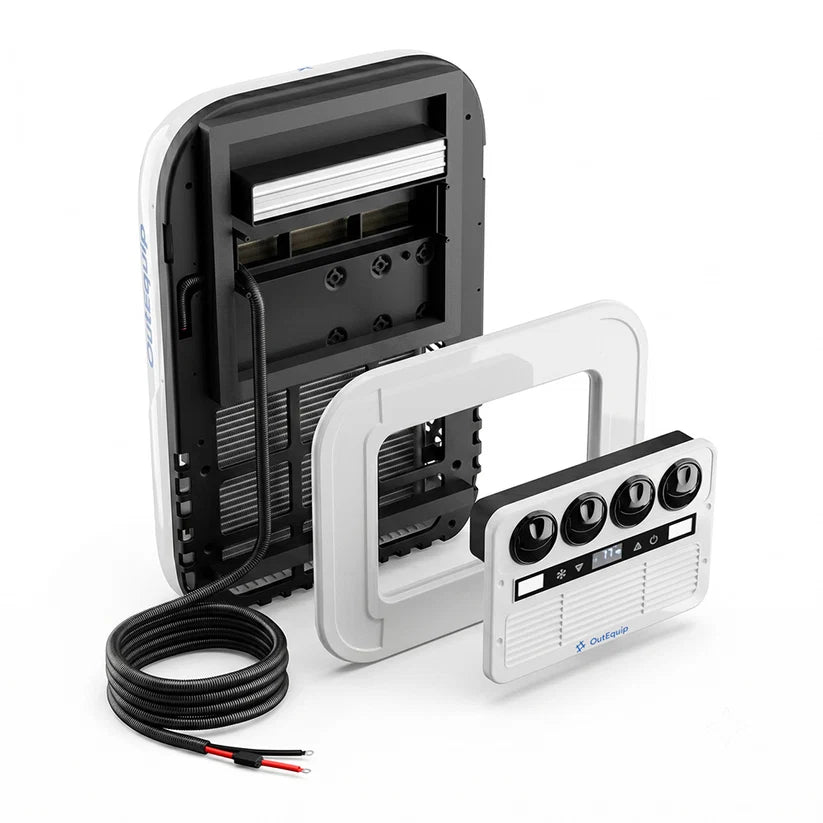

The indoor and outdoor sections clamp directly together through a single cutout, creating a streamlined installation without the need for external copper refrigerant lines or complicated plumbing. The system comes pre-filled with refrigerant for added installation convenience.
EFFICIENT HEATING & QUIET OPERATION
A built-in PTC heater provides efficient supplemental heat, while quiet, efficient fans help maintain a more comfortable interior environment without excessive operating noise.
BUILT-IN BATTERY & SYSTEM PROTECTION
Integrated protection helps safeguard the system against overtemperature, undervoltage, overvoltage, and overload conditions. The undervoltage protection feature helps prevent excessive battery discharge during operation.
-
Cooling Capacity: 10,000 BTU
-
Heating Capacity: 4,500 BTU
-
Power System: 12V DC
-
Compressor: Variable-speed scroll compressor
-
Mounting Options: Horizontal roof mount or vertical wall, bulkhead, and rear-door mount
-
Dual Cooling & Heating: Provides climate control for year-round vehicle use
-
Pre-Filled Refrigerant: Ready for installation without external refrigerant line plumbing
-
All-in-One Design: Indoor and outdoor units connect directly through a single cutout
-
Variable-Speed Technology: Adjusts compressor output according to demand to help reduce power consumption
-
PTC Heater: Provides efficient supplemental heating
-
Quiet Operation: Efficient, low-noise fans help maintain a quieter interior
-
Battery Protection: Includes undervoltage, overvoltage, overtemperature, and overload protection
-
Durable Construction: Corrosion-resistant condenser helps provide long-term durability
-
Flexible Installation: Designed to accommodate a variety of RV, camper, truck, and van configurations

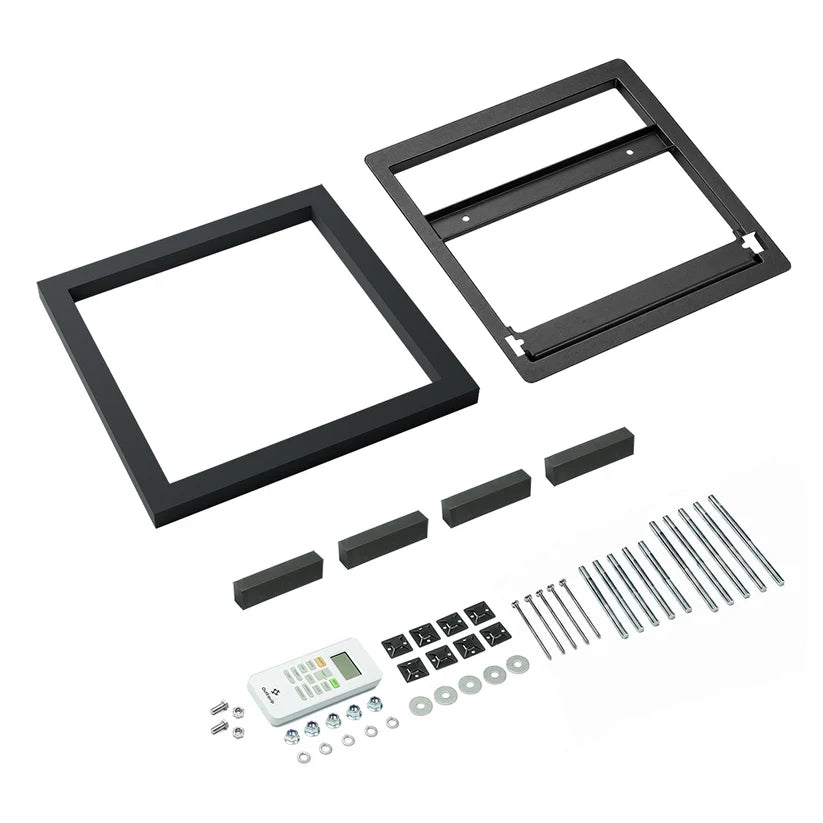

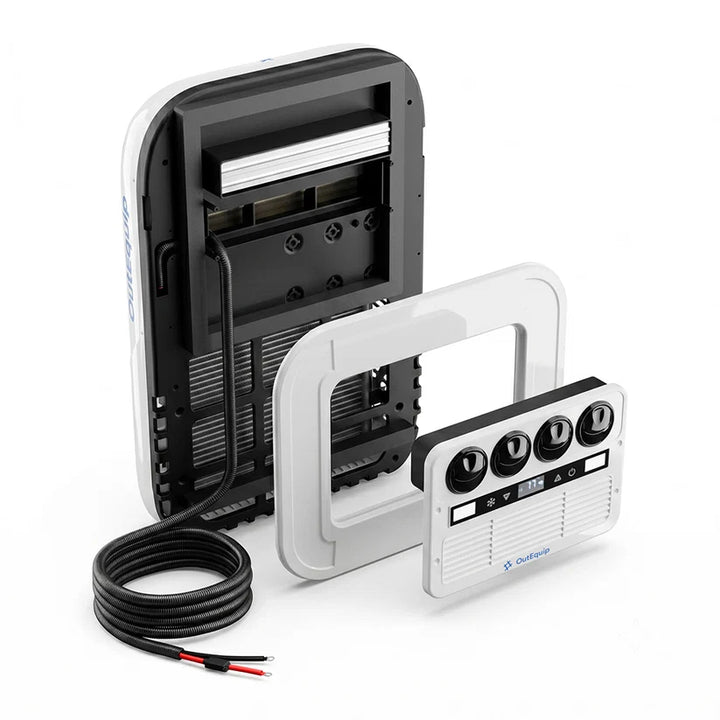

PACKAGE INCLUDES
1x Rooftop unit

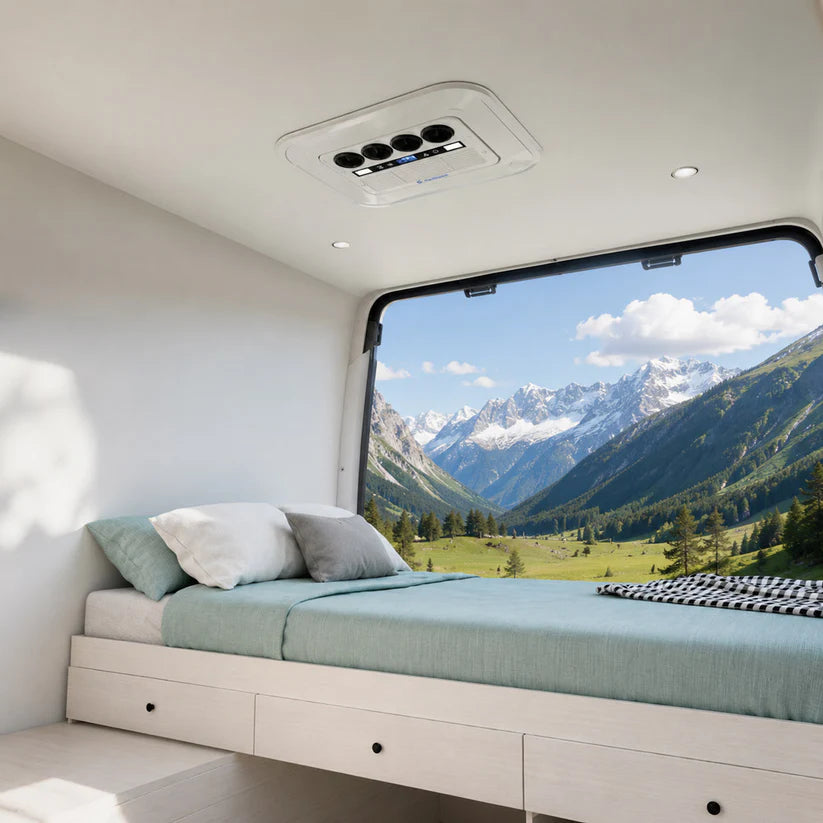

1x Indoor panel
1x Indoor panel trim
1x Power cord (14 feet in length)
1x Seal gaskets
2x Leveling blocks
1x Mounting plate
1x Remote control
1x Pack of universal screw
1x User manual
IMPORTANT NOTE

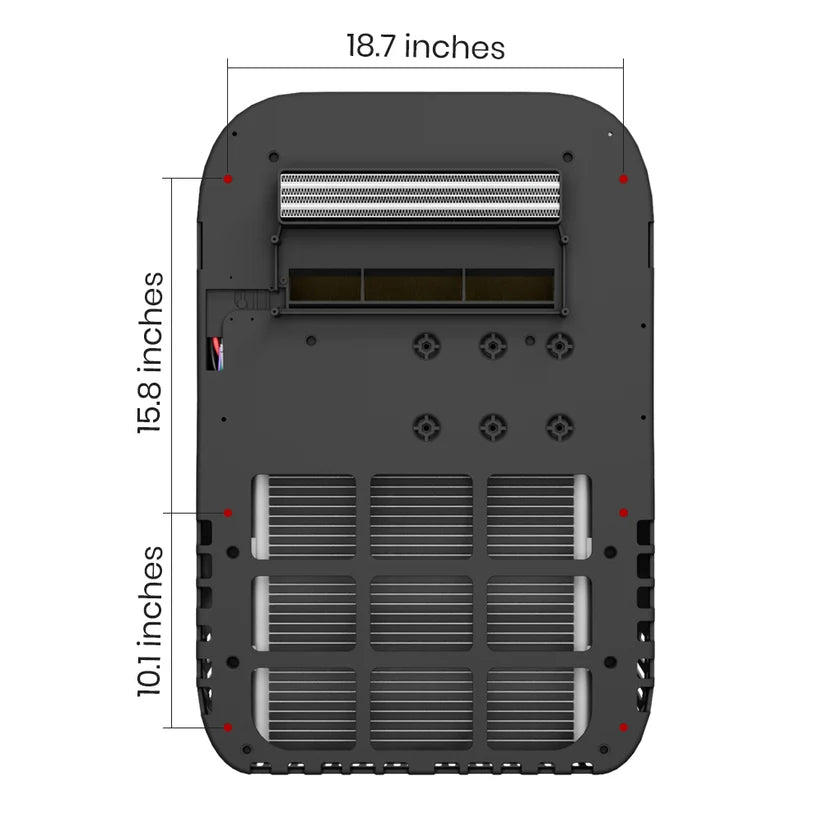

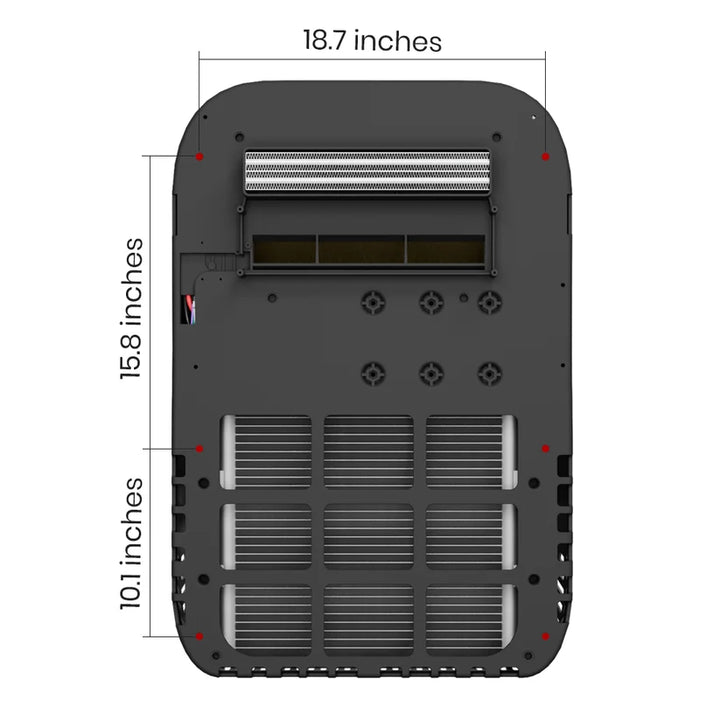

Please ensure your roof opening dimensions are within the following parameters:
Minimum size
14 x 7 inches (355 x 177 mm)
Maximum size
16.5 x 15.7 inches (420 x 400 mm)
Also fit standard 14.1 x 14.1 inch rooftop cutouts, ideal for most RVs, vans and campers.
Note: Most starter batteries can’t handle the continuous 58A (@12V) draw in Turbo mode. Use a LiFePO₄ battery with a 100A+ BMS or a 1000W+ AC-to-DC converter connected to your power station’s AC output for stable voltage and reliable, worry-free comfort.
| Model no. | OEP2500B |
| Layout structure | Roof or Wall-Mounted |

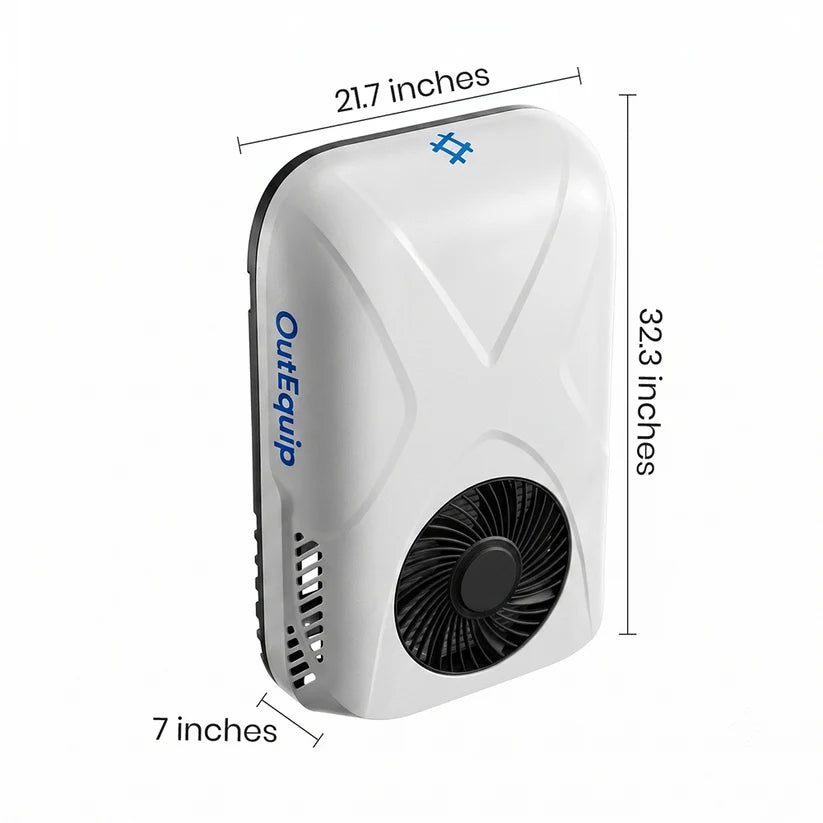

| Rooftop unit dimension | 32.3 x 21.7 x 7 inches (820 x 550 x 177 mm) |

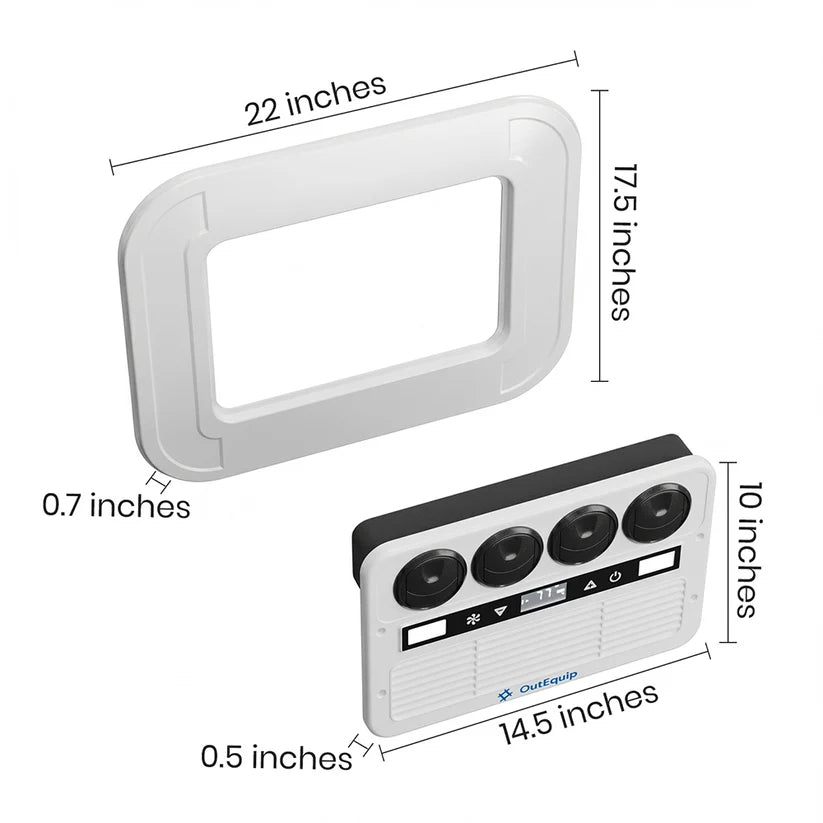

| Indoor panel dimension | 14.5 x 10 x 0.59 inches (368 x 254 x 15 mm) |
| Panel trim dimension | 22 x 17.5 x 0.59 inches (559 x 445 x 15 mm) |
| Rooftop unit net weight | 43 Lb. |
| Indoor panel net weight | 2 Lb. |
| Rated cooling capacity | 10,000 BTU / 11,000 BTU / 11,000 BTU |
| Rated heating capacity (optional) | 4,500 BTU |
| Modes | Turbo / Eco / Sleep / Fan |
| Set temp. range | 63°F to 86°F |
| Air volume | 450 m³/h |
| Sound pressure level | 53 / 48 / 40 dB |
| Bluetooth mobile control | Yes |
| Remote control | Yes |
| Timer | Yes |
| LED night lights | Yes |
| Warranty | 1-Year Warranty |
| Rated voltage | DC 12V / 24V / 48V |
| Current range | 21-58A / 15-35A / 7-18A |
| Standby power | 1W |
| Soft start function | Yes |
| Pre-installed inline fuse | 100A / 80A / 50A |
| Power cord specification | 6AWG / 8AWG / 8AWG |
| Refrigerant | R134A, 310g |
| Refrigerant oil | 90ml-120ml POE68 |
