Features
  • Maximize your storage space in your garage - this is our slimmest wheel well tank
  • Designed specifically to fit around the Sprinter's wheel wells
  • Food grade and BPA free (US + CA approved)
  • Symmetrical design fits on both the driver and passenger sides
  • Save time - our fresh water fittings kit has all the parts you need and will save you trips to/from the plumbing store
Sale price $294.00

/
  • In stock, ready to ship
  • Inventory on the way
  • Free Shipping in Canada & USA 🇨🇦 🇺🇸

A PERFECT FIT

5 STAR RATINGS

IMPROVE TRACTION

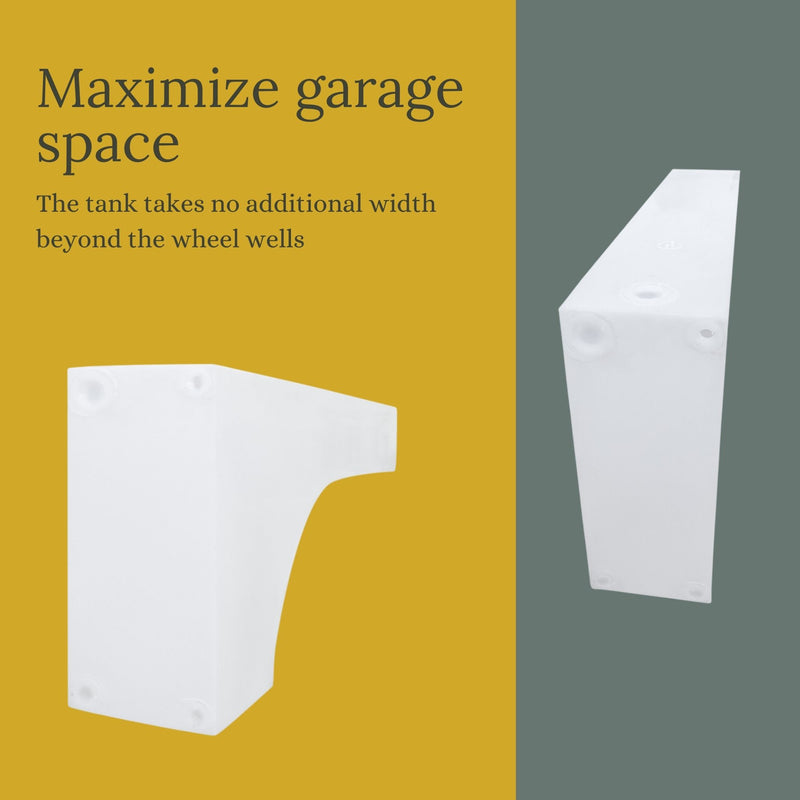

This tank perfectly fits around the wheel well of your Sprinter and takes up no addition width - maximizing your garage space!

Made with BPA-free, food-grade (CSA approved) polyethylene, not only do these tanks save space and provide a good amount of safe drinking water, they also insulate your wheel well to keep the road noise down.

Looking for a grey water tank to compliment your freshwater tank? Check out our 17 Gallon Sprinter Undermount Tank! The undermount tank fits snugly under the drivers side of your Sprinter's framed undercarriage. It's the perfect solution for your off-grid water requirements.

Key Features & Benefits:

  • Slim design - Sacrifices ZERO space in your garage.
  • Space Saving - A unique way to make efficient use of that awkward wheel well area and shape.
  • Build Options - These tanks are interchangeable between both wheel wells. You can fit this tank over whichever wheel well works best for your build. Need more water? Place one on either side of your van for mega-volume!
  • Distributes Weight - Adds weight over your rear axle to help increase traction if you get in a sticky spot. No more slips and skids, not to mention unwanted wheel wear, thanks to the perfect weight distribution of these tanks.
  • Sound Proofing - When it comes to road noise, these tanks step it up with added noise reduction around your wheel well.
  • BPA-Free and Food Grade Approved - Feel safe knowing these tanks are food grade CSA approved! Wash the dishes, have a shower, fill the dog bowl, and stay hydrated, while exploring in your van!
  • Fittings Kit Add-On Available - Save yourself the headache and multiple trips to the plumbing store when you bundle this tank with our Freshwater Fittings Kit!
  • Compatible - Pairs well with our  17 Gallon Sprinter Undermount Tank.

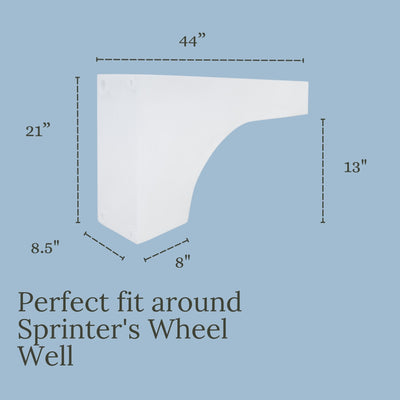

Dimensions & Specifications:

Designed for the Sprinter 144", 170" & 170" extended wheelbases.

Tank can be placed on either the PASSENGER SIDE or DRIVER SIDE of the van.
Fits around the wheel well with or without flooring installed in the van.

Tanks are made from linear low-density polyethylene.
Food grade CSA approved and BPA free - safe for freshwater use!

16 US Gallons / 60.5 Litres

41” 8.5” 21” (Length x Width x Height)

1 x 1 ¼" drill-out membrane port (on top)
1 x 1 ¼" drill-out membrane port (on one end)
1 x ¾" ports (on one end)
2 x ½” ports (on one end)

The larger 1 ¼" ports are "membrane ports", which require drill-out for use.
The membrane eliminates the need to plug the ports if you don't use them.

All ports are NPT female-threaded.

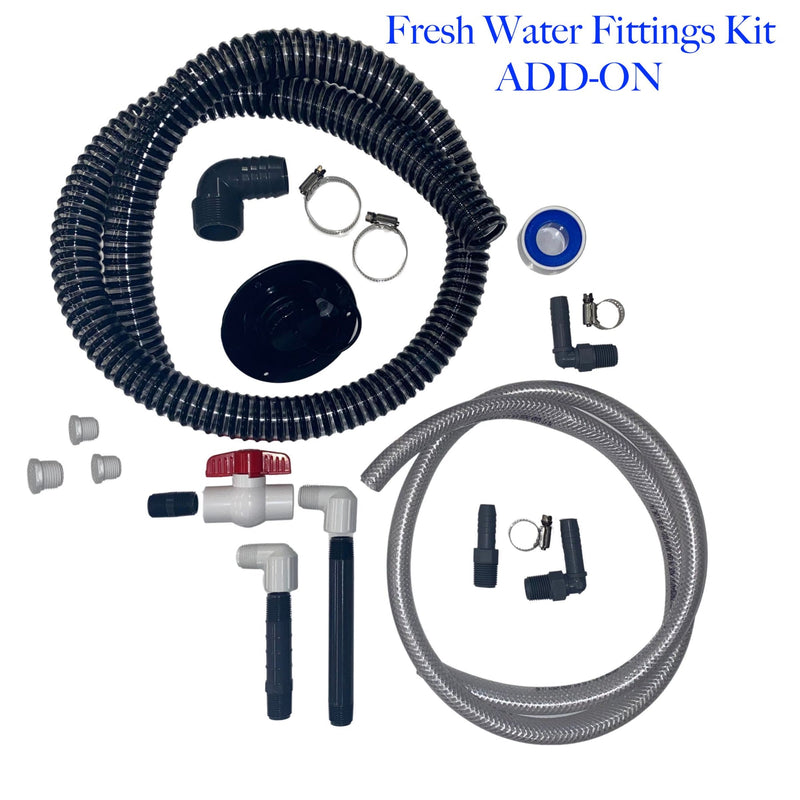

Fresh Water Fittings Kit Add-On:

  • 1x 1 ¼" PVC 90
  • 2x ¾" PVC 90
  • 1x ¾" PVC Ball Valve
  • 1x ¾" Nipple - 6" long
  • 1x ¾" Nipple - 4" long
  • 1x ¾" Nipple - 1 ½" long
  • 1x ½" Poly Adaptor
  • 2x ½" Poly Elbows
  • 2x #20 Hose Clamps
  • 2x #8 Hose Clamps
  • 1x Roll of Teflon Tape
  • 1x Fill Port
  • 5ft Fill Hose
  • 5ft ⅝" ID Vinyl Hose

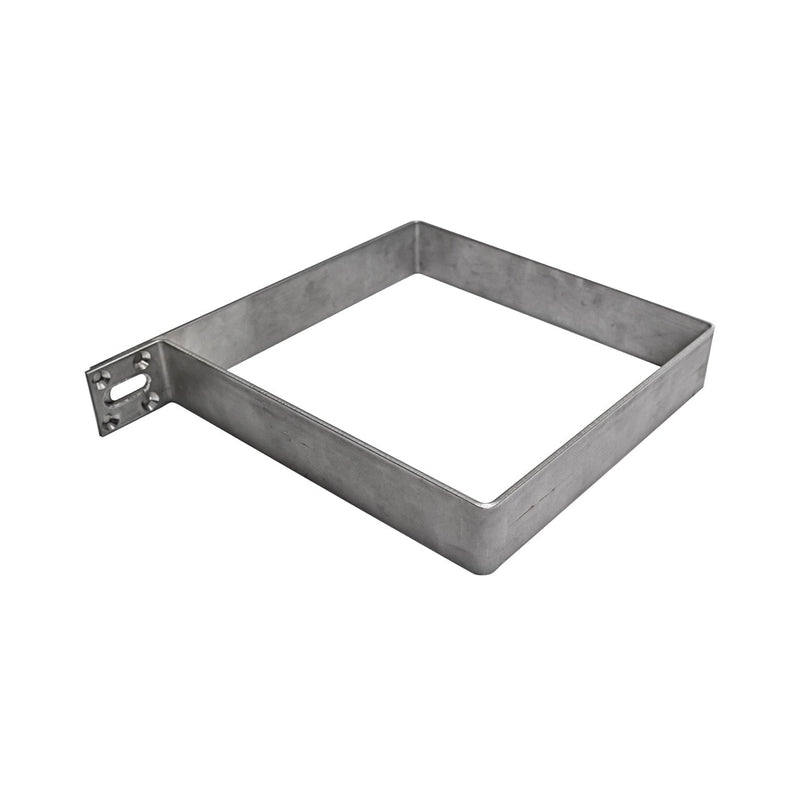

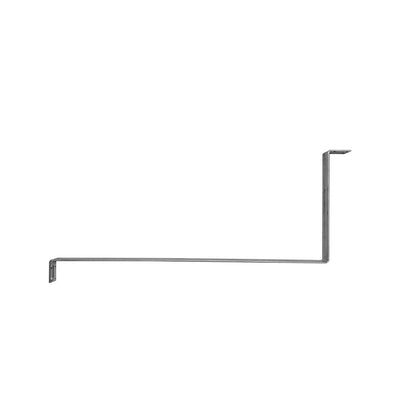

Stainless-Steel Strapping Kit Add-On:

  • Specifically designed for your Sprinter Pistol Wheel Well Water Tank
  • Kit includes 2x Heavy-Duty Stainless-Steel Straps & Stainless-Steel Mounting Hardware

More Information:

Wheel Well & Undermount Water Tank FAQ Sheet

Full Details of the Fresh Water Fittings Kit Add-On
Select this add-on with your tank purchase and save $20 vs buying separately!

Full Details of the Stainless-Steel Strapping Kit Add-On
Select this add-on with your tank purchase and save $30 vs buying separately!

FAQ

We can't add any additional fittings to your tank as they are made in batches. The fittings are spin welded on requiring specialized equipment. There is likely a spin welder in your local area that can add additional fittings for you if needed.

The standard wall thickness of our water tanks is approximately 3/16”.

The most common water level gauge is the KUS brand tank sensor.

Items may be returned within 14 days of delivery. Must be unused, and in original packaging.


You are responsible for return shipping. Water tanks and batteries are subject to an $80 restocking fee.
