Sprinter Engine Bay Air Compressor
Sprinter Engine Bay Air Compressor
Features
- High-Performance Air System – Dual VIAIR 444C compressors deliver high CFM for fast tire inflation and reliable operation in demanding conditions.
- Sprinter-Specific Mounting – Includes a custom bracket designed for easy installation in the engine bay of 2019+ Mercedes Sprinter Vans (VS30 chassis).
- All-in-One Kit – Comes complete with everything needed for a fully functional onboard air setup—ideal for air tools, air lockers, inflatables, and more.
Regular price$1,34033
$1,340.33
/
- In stock, ready to ship

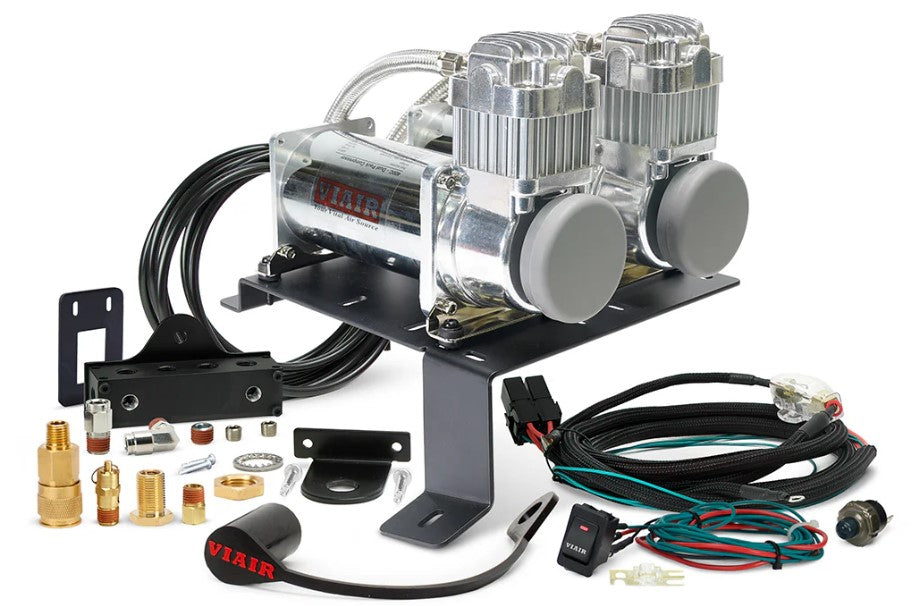

Dual 444C VMS System with bracket for 2019+ Sprinter Van!
VIAIR Dual Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM and fast tire fill with unsurpassed durability. These kits come with all components necessary to install a fully functioning system. A vehicle-specific bracket provides an easy mounting platform in the engine bay of your Sprinter Van VS30. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.
| Weight | 32 lbs |
| Dimensions | 19 x 13 x 12 in |
SPECS Per Compressor
- CFM: 2.12 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Duty Cycle: 50% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions:10.87″L x 4.2″W x 7.06″H
- Net Weight: 10.80 lbs.

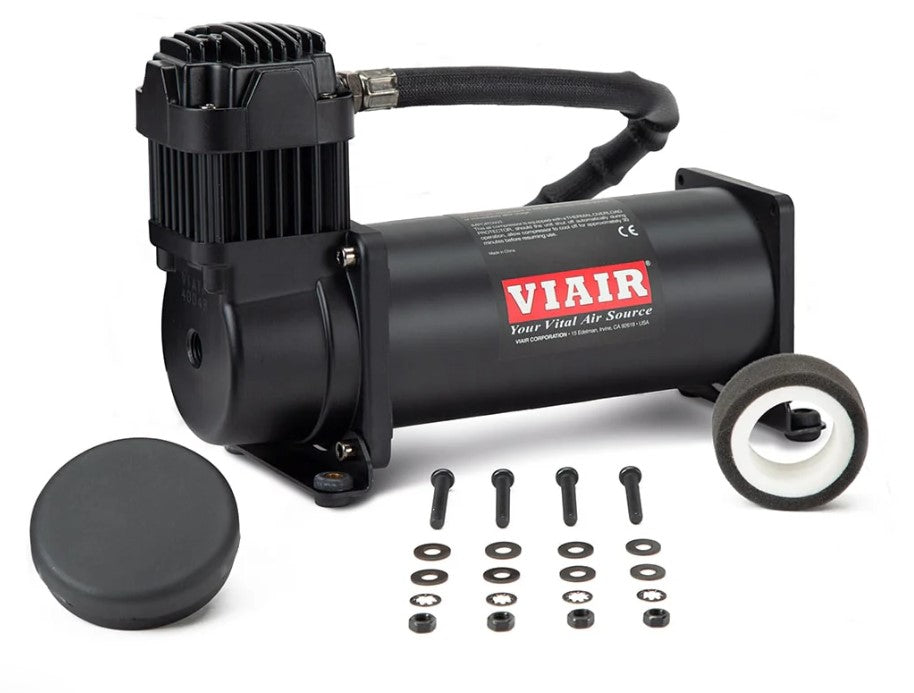

- (2) 444C (Stealth Black or Chrome) Compressors w/ Thermal Overload Protectors
- Complete dual wiring harness w/ 80A fuse holder
- Air Locker compatible
- Sealed compressor with IP rating of IP67 (Waterproof/Dustproof)
- Designed to be air tank ready (Air tank optional)
- 8-port Billet Manifold
- Pro Series Air Source Relocation Kit
- Illuminated Rocker Switch
Sprinter VS30 (2019 - Present)
