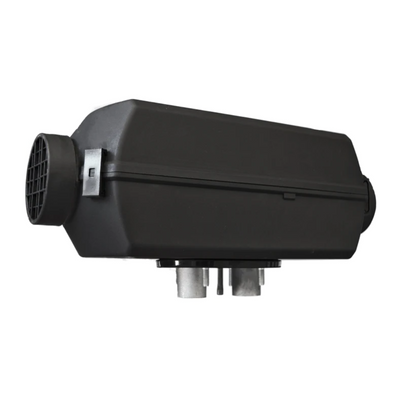

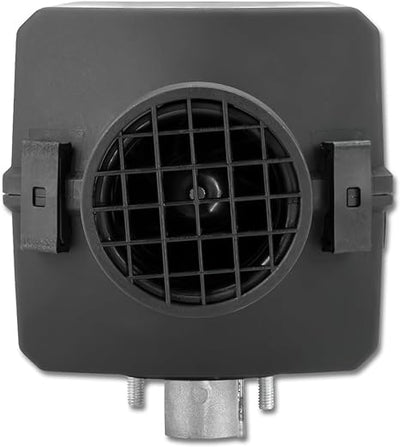

Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)

Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)
Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)
Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)
Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)
Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)
Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)
Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)
Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)
Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)

Planar (Autoterm) Diesel Air Heater for Campervan 2D-HA(TR)

Features
  • Offers fully automated temperature control for convenience and efficiency
  • Delivers instant heat to any vehicle interior, ensuring immediate comfort
  • Helps cut fuel costs in compliance with "no idling zone" regulations; includes analog or digital controller, basic installation kit, and self-diagnostic system
Regular price $1,075.00
/
Shipping calculated at checkout.
  • In stock, ready to ship

APPROXIMATE LEAD TIME IS 1-2 WEEKS

With a forced-air design, this device provides up to 7,000 BTU/hour of quick, dry heat for your van. One liter of gasoline will run it for roughly five hours. It runs on diesel or kerosene and 12V or 24V electricity.

The ultra-compact Planar Diesel Heater has an automated temperature control system, plug-and-play installation, a full self-diagnostic system, and efficient performance. It also runs silently to avoid disturbing your sleep. In addition, a two-year labor and parts guarantee is included with the equipment.

Option for:

  • Rheostat Controller (PU-5) which works like a dimmer switch, allowing you to control the intensity by turning a knob.
  • Digital Controller (PU-28) which works like a digital thermostat allowing you to set a desired temperature.

The included thermostat Controller PU-28 means that you can control the temperature and output of the heater from the comfort of your bed.

A portable, fuel-efficient diesel air heater that keeps you dry and toasty on even the coldest nights is the Planar (Autoterm) Diesel Air Heater.

You won't need a separate fuel tank for the heater because a planar diesel heater can be easily connected to the vehicle's primary fuel tank, using less fuel to produce more heat. Additionally, the Planar 2D performs admirably at high altitudes because it automatically adapts to such conditions. Up to 8500 feet (2600 meters) have been the official testing altitudes.

Key Features & Benefits:

  • Low fuel consumption - Autoterm Planar heaters are of excellent build quality and offer low fuel consumption and minimal noise.
  • Reliable, robust technology - with sturdy construction and dependable performance ensure long-lasting comfort, making it a trusted choice for heating needs
  • Most compact diesel-powered air heater from Air series - With its compact design, it can be easily installed or retrofitted in almost any van.

Dimensions & Specifications:

  • Rated Voltage - 12V or 24V
  • Fuel - Diesel
  • Heating Capacity - 2,700 - 6,800 btu/h (0.8 - 2.0 kW)
  • Air Flow Rate - 20 - 44 cfm (34 - 75 m³/h)
  • Fuel Consumption - 0.02 - 0.06 gal/h (0.24 l/h)
  • High Altitude System - 13,700 ft (4,200 m)
  • EL. Power Consumption- 0.8 - 2.42 A
  • Weight - 6.6 lbs (3.0 kg)
  • Dimensions (L x W x H) - 12.2 x 4.7 x 4.7 in (310 x 119 x 120 mm)

Weight 6.6 lbs (3.0 kg)
L x W x H 12.2 x 4.7 x 4.7 in. (310 x 119 x 120 mm)

Weight 6.6 lbs (3.0 kg)
L x W x H 12.2 x 4.7 x 4.7 in. (310 x 119 x 120 mm)
Voltage 12V or 24V
Fuel Diesel
Heat Output; kW (BTU) 2,700 - 6,800 btu/h (0.8 - 2.0 kW)
Automatic altitude compensation (m) 2,500

What is the difference between the controller options?
PU-5 Manual rheostat controller. Has no timer or digital screen. Only a dial to turn up/down heat. PU-27 Original digital controller. Has physical buttons and ability to set temperatures and timers. PU-28 Newest digital controller. Touch screen display and advanced timers and other features.
