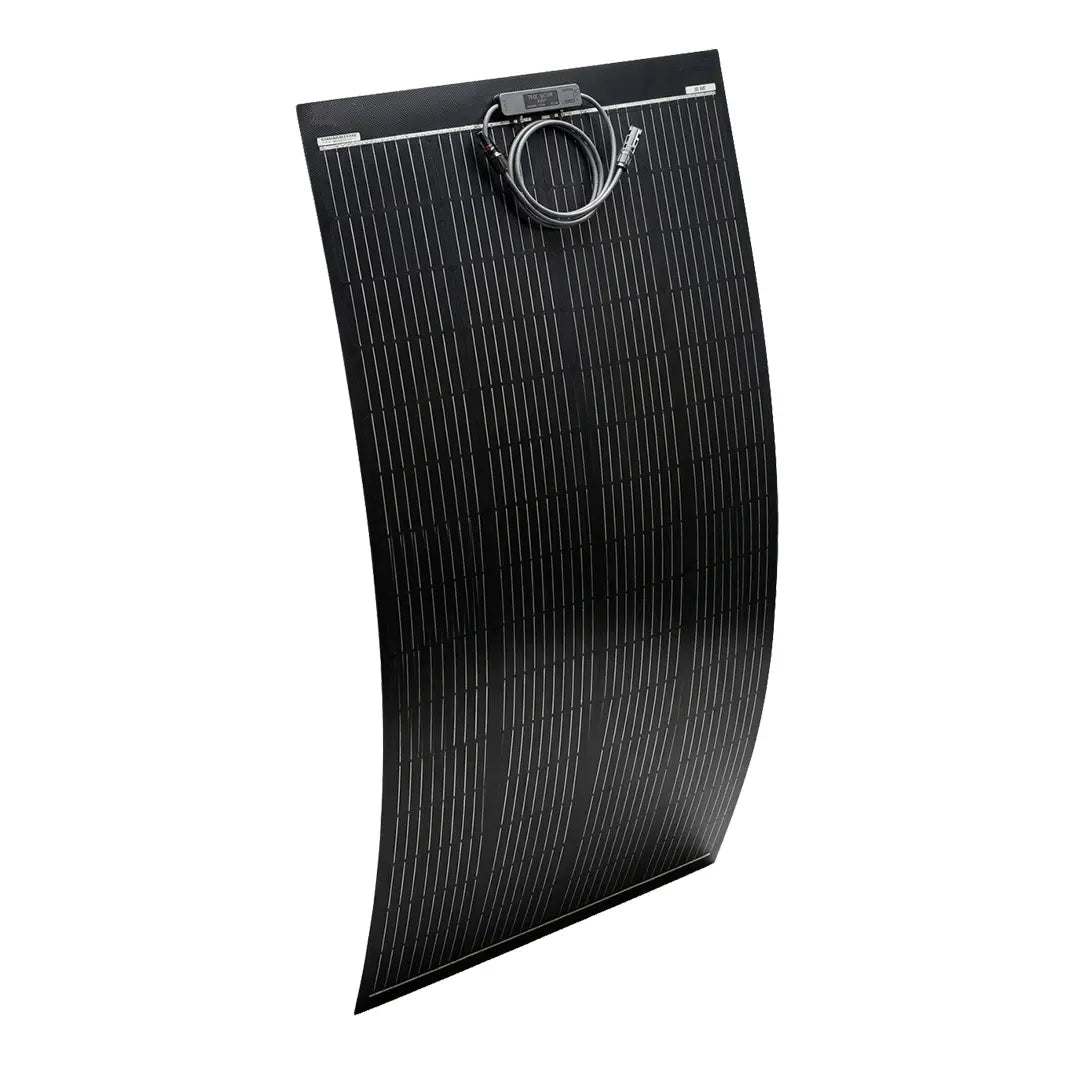

Lumera 220W Flexible Solar Panel
Lumera 220W Flexible Solar Panel
Features
- Multi-busbar design for maximum efficiency.
- Fibre epoxy backing for superior longevity with CPC interlayer and ETFE textured front.
- Dependable quality - made locally, tested locally and shipped within Canada.
Regular price$30000
$300.00
/
Built in Canada for RVs, Marine & Off-Grid Power
Lightweight, durable, and engineered for dependable performance, the Lumera 220W Flexible Solar Panel is designed for RVs, boats, vans, cabins, and other off-grid applications. Its slim, flexible construction conforms to curved surfaces while delivering efficient power from premium monocrystalline solar cells.
Electrical Specifications
- Voltage at Maximum Power (Vmp): 18.78V
- Current at Maximum Power (Imp): 12.24A
- Open Circuit Voltage (Voc): 21.86V
- Short Circuit Current (Isc): 13.41A
- Maximum System Voltage: 600VDC
- Maximum Series Fuse Rating: 15A
- Power Tolerance: ±5W
Dimensions: 150 × 76.5 × 0.5 cm (59.1 × 30.1 × 0.2 in)
Weight: 6.5 kg (14.33 lbs)
Construction
- ETFE textured front surface
- Fibre epoxy backsheet
- Made in Canada
Key Features
- Made in Canada using high-efficiency monocrystalline solar cells
- Flexible design for installation on curved and uneven surfaces
- ETFE textured front provides excellent weather and UV resistance
- Lightweight construction simplifies handling and installation
- Multi-busbar cell technology helps maximize power output
- Ideal for 12V RV, marine, van, trailer, and off-grid solar systems
| Weight | 6.5 kg (14.33 lbs) |
| Dimensions | 150 × 76.5 × 0.5 cm (59.1 × 30.1 × 0.2 in) |
| SKU | LS220WFLEX12V |
| Brand | Lumera Solar |
| Panel Type | Flexible Monocrystalline |
| Maximum Power (Pmax) | 220W |
| Module Efficiency | 20% |
| Voltage at Maximum Power (Vmp) | 18.78V |
| Current at Maximum Power (Imp) | 12.24A |
| Open Circuit Voltage (Voc) | 21.86V |
| Short Circuit Current (Isc) | 13.41A |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 15A |
| Power Tolerance | ±5W |
| Front Material | ETFE Textured |
| Backsheet Material | Fibre Epoxy |
| Dimensions | 150 × 76.5 × 0.5 cm (59.1 × 30.1 × 0.2 in) |
| Weight | 6.5 kg (14.33 lbs) |
| Recommended Application | 12V RV, Marine, Van & Off-Grid Systems |
| Country of Manufacture | Made in Canada |
| Warranty | 3-Year Power Output Warranty |
