Black COB LED light kit for Fiamma awnings
This listing is for the deep-black version. The 300 cm base kit is Fiamma SKU 98655H914. Longer configurations include the matching 50 cm black extension, SKU 98655H915.

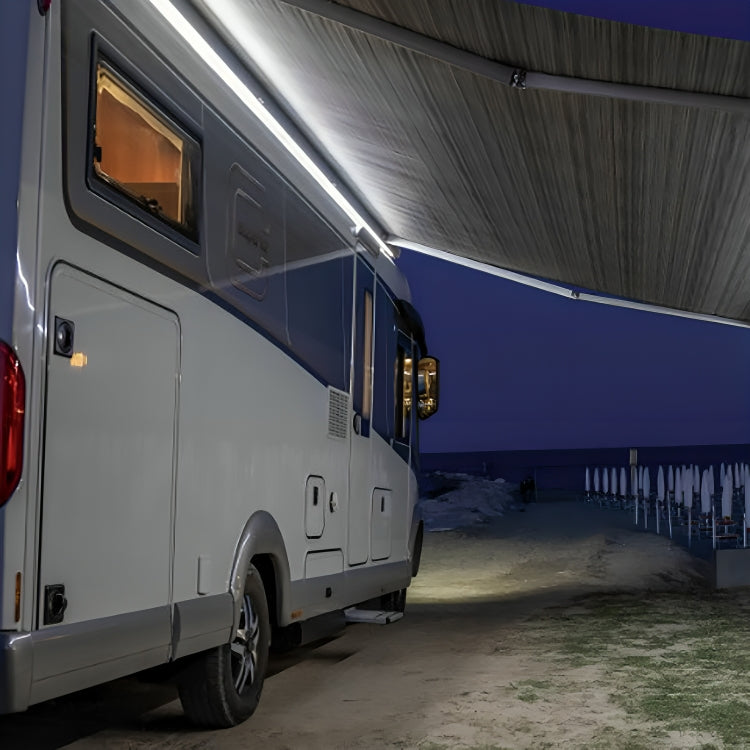

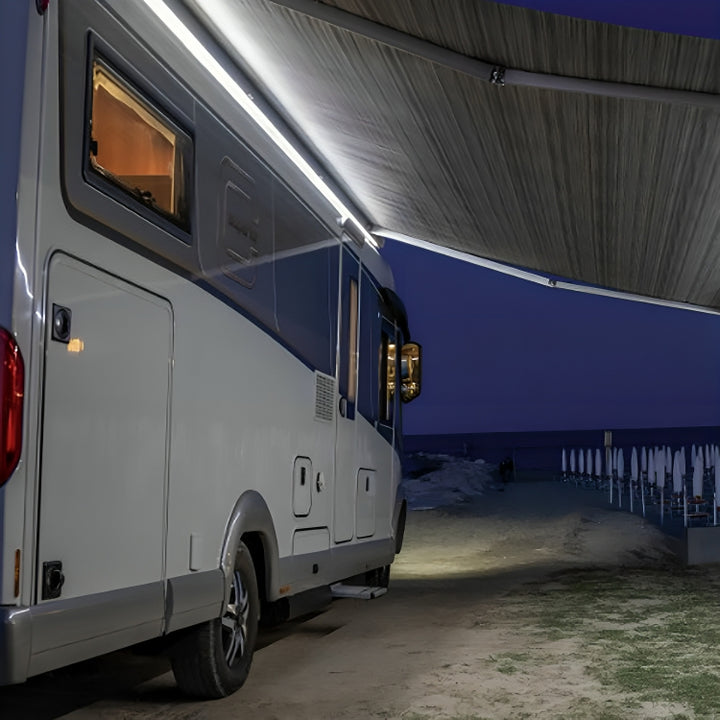

The COB LED bars produce an even, neutral-white 4000K light without the dotted appearance of traditional LED strips. They press into the lower housing rail of compatible Fiamma awnings, so the lights can be used while the awning is open or closed and can remain installed during travel.
Choose the correct configuration
| Awning size |
Included |
SKU combination |
| 300 / 345 |
1 × 250 cm base kit |
98655H914 |
| 350 |
Base kit + 1 × 50 cm extension |
98655H914 + 98655H915 |
| 400 |
Base kit + 2 × 50 cm extensions |
98655H914 + 2 × 98655H915 |
| 450 |
Base kit + 3 × 50 cm extensions |
98655H914 + 3 × 98655H915 |
Compatibility
- Fiamma F45S
- Fiamma F45L
- Fiamma F70
- Fiamma F65 Eagle
What the base kit includes
- 1 × 50 cm black COB LED bar with a 12V connection cable
- 4 × additional 50 cm black COB LED bars
- Approximately 250 cm of total lighting coverage
Specifications
| Case colour |
Deep black |
| Base kit SKU |
98655H914 |
| Matching extension SKU |
98655H915 |
| UPC |
8004815471460 |
| LED type |
COB |
| Light colour |
Neutral white, 4000K |
| Light output |
2550 lumens total (510 lumens per bar) |
| Beam angle |
120° |
| Voltage |
12V DC |
| Power draw |
27.5W total (5.5W per bar) |
| Current draw |
2.3A total (0.46A per bar) |
| Protection rating |
IP54 |
| Connection cable |
500 mm |
| Net weight |
250 g |
Installation note: A switched 12V DC connection is required. Centre the bars in the awning case for an even appearance.
