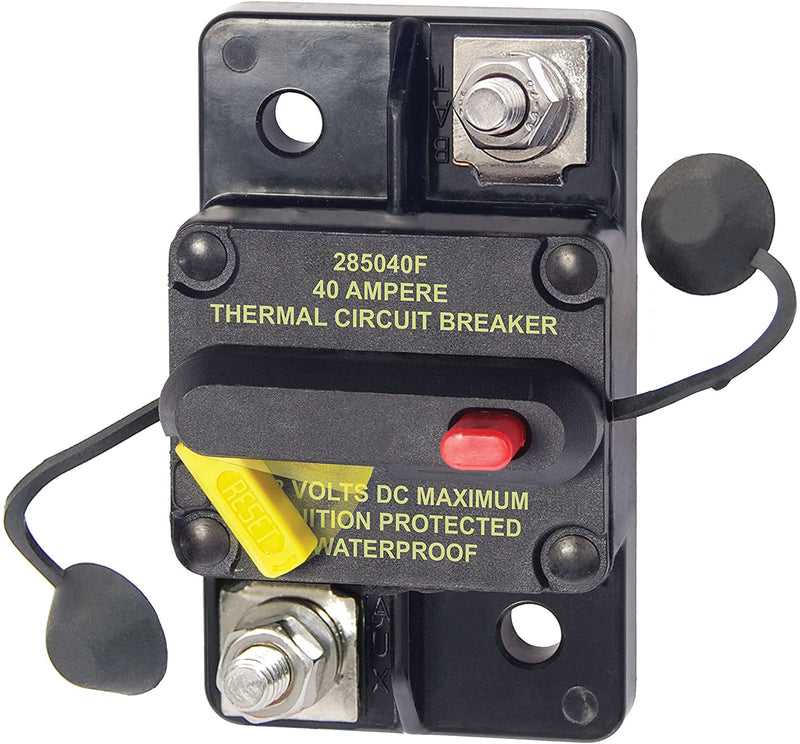

Blue Sea 285-Series Solar Disconnect Breaker (40A & 60A)

Blue Sea 285-Series Solar Disconnect Breaker (40A & 60A)
Blue Sea 285-Series Solar Disconnect Breaker (40A & 60A)
Blue Sea 285-Series Solar Disconnect Breaker (40A & 60A)

Blue Sea 285-Series Solar Disconnect Breaker (40A & 60A)

Regular price $83.00
/
  • Free Shipping in Canada 🇨🇦
  • Free Shipping in USA 🇺🇸
Features
  • Combines switching and circuit breaker function into one unit
  • Trip-free design cannot be held closed after trip
  • Visible reset lever shows open condition
  • Drop in replacement for 185-series circuit breakers
  • Non-corrosive materials and waterproof construction

These low cost, high amperage, thermally activated circuit breakers, are built for harsh environments with all non-corrosive materials and waterproof construction. Ideal for inverters, chargers, and distribution panels, they are manually resettable with the reset handle providing a positive means of determining that a circuit fault has occurred. A red reset button can also be tripped manually, allowing the breaker to be used as a switch. Configured for panel mounting. Rated at 3000 ampere interrupt capacity and 30 volts DC maximum.

    Key Features & Benefits:

    • Provides circuit protection and switching
    • Trip-free design cannot be held closed after trip
    • Yellow reset lever shows open condition
    • Drop in replacement for 185-series circuit breakers
    • CE marked
    • Meets SAE J1171 external ignition protection requirements
    • IP67 protected against immersion up to 1 meter for 30 minutes
    • AIC ratings achieved using SAE J1625

    Amperage Options:

    • 285-Series Blue Sea Solar Disconnect Breaker 40A DC (7182)
    • 285-Series Blue Sea Solar Disconnect Breaker  60A DC (7184)

    Dimensions & Specifications:

    1.8" x 1.2" x 3.2" (L x W x H)
    0.50lb

    Circuit Breaker Type: Thermally Responsive Bi-Metal Blade
    Class: Type III - Switchable/Manual Reset - Trip Free

    Interrupting Capacity: 3,000A @ 48V DC
    Voltage Max: 48V DC
    Temperature Min: -40°C
    Temperature Max: 85°C

    Terminal Stud: M6 (accepts 1/4" Ring Terminal)
    Terminal Stud Torque: 50 in-lb (5.65 Nm)
    Mounting Hole: Accepts 1/4" Screw
