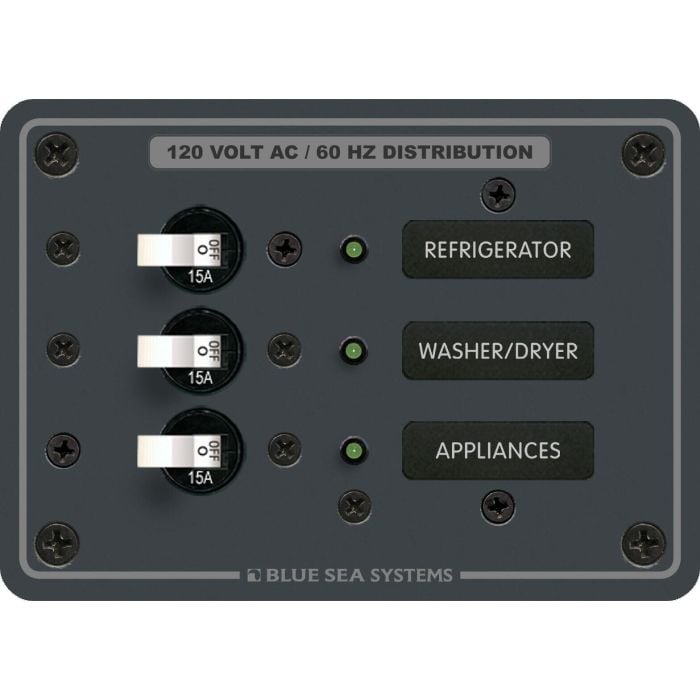

Blue Sea 3-Position AC Circuit Breaker Panel (8058)
Blue Sea 3-Position AC Circuit Breaker Panel (8058)
- Three 15A white-toggle breakers control and protect three 120V AC branch circuits.
- Pre-wired hot, neutral and safety-ground buses simplify installation.
- Backlit circuit labels and green ON LEDs make circuit identification easy.
Keep your campervan’s AC circuits organized with the Blue Sea 8058 three-position branch distribution panel. Three included 15A breakers provide individual circuit control, while illuminated labels and green status LEDs make each circuit easy to identify.
Features & Benefits
- Three protected branch circuits: Supplied with 15A single-pole A-Series breakers and white toggle switches.
- Pre-wired bus assembly: Hot, neutral and safety-ground buses are installed to simplify wiring.
- Backlit circuit labels: Identify circuits in low light; connect the backlight system to a suitable DC supply as specified in the installation guide.
- Clear circuit status: Green ON indicators are installed at all three positions.
- Durable metal construction: 1/8-inch 5052-H32 aluminum with a graphite textured polyurethane finish.
- Compact footprint: A 5.25 × 3.75-inch face fits smaller electrical layouts.
What’s Included
- Blue Sea 8058 three-position AC panel
- 3 × 7210 A-Series single-pole 15A white-toggle breakers
- 3 × 8034 green 120V AC indicator LEDs

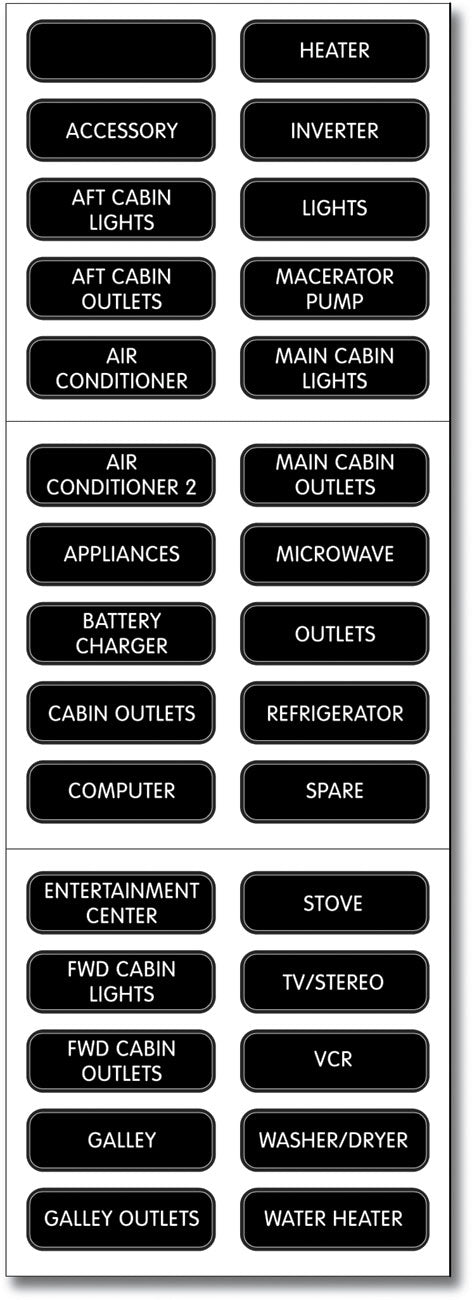

- 1 × 8031 basic AC panel label set with 30 labels
Installation & Compatibility
For 120V AC branch distribution. This panel requires suitable upstream main circuit protection and is not intended to serve as the main AC breaker panel. Install in a dry, protected location. The 100A maximum bus rating does not change the included 15A branch-breaker ratings. Optional Blue Sea 4026 isolation cover sold separately.
Downloads
| Width | 5.25 in (133.35 mm) |
|---|---|
| Height | 3.75 in (95.25 mm) |
| Mounting centres | 4-7/16 × 2-15/16 in (112.7 × 74.6 mm) |
| Model | 8058 |
|---|---|
| Voltage | 120V AC |
| Branch circuits | 3 |
| Included breakers | 3 × 15A single-pole A-Series, white toggle |
| Maximum bus rating | 100A; subject to installed components and wire sizing |
| Panel material | 0.125-inch 5052-H32 aluminum |
| Finish | Graphite textured polyurethane |
| Width × height | 5.25 × 3.75 in (133.35 × 95.25 mm) |
| Mounting centres | 4-7/16 × 2-15/16 in |
| Optional cover | Blue Sea 4026, sold separately |
120V AC branch distribution with appropriate upstream main protection. Requires a protected, dry mounting location. Backlighting connects to a suitable DC source per the manufacturer instructions. Optional 4026 isolation cover sold separately.
