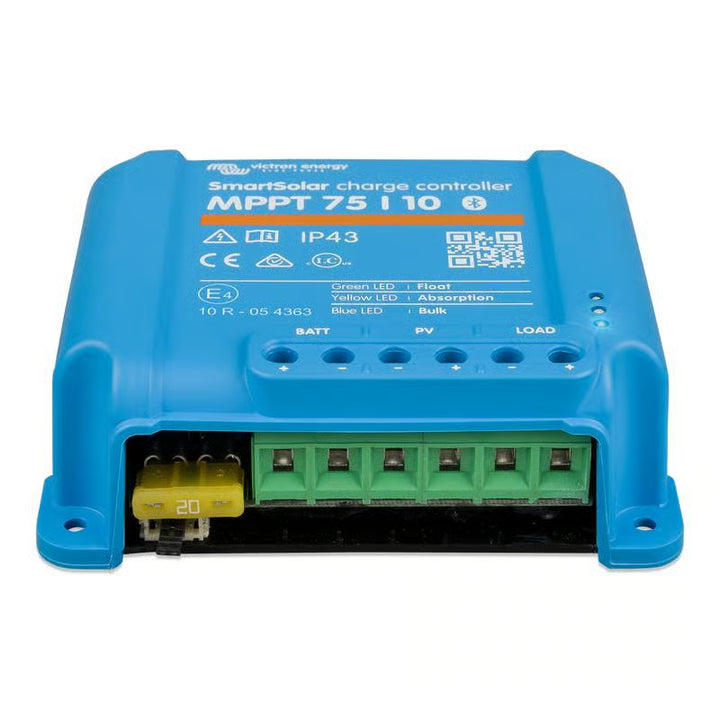

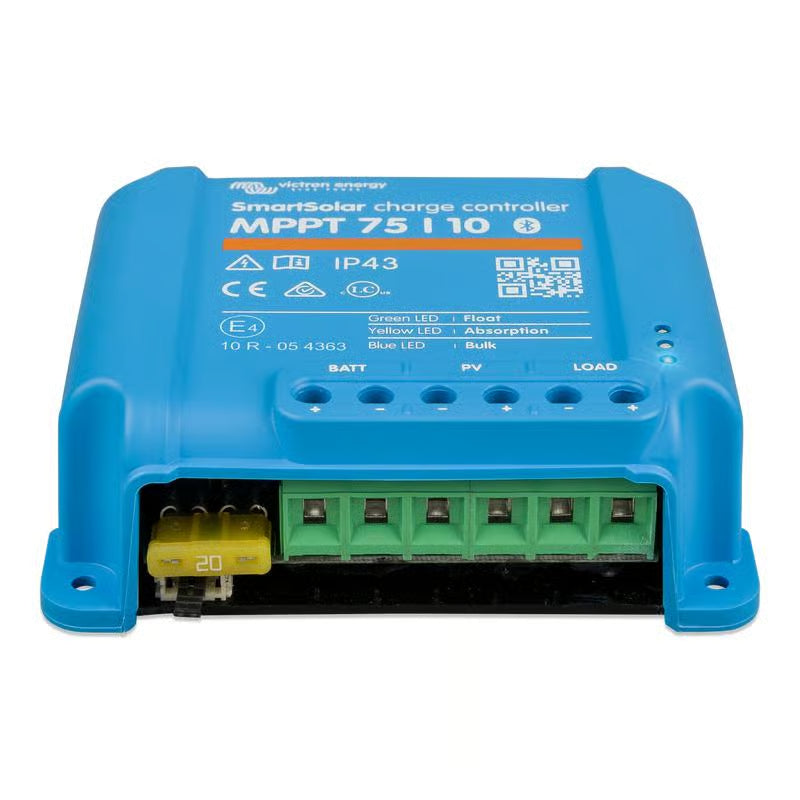

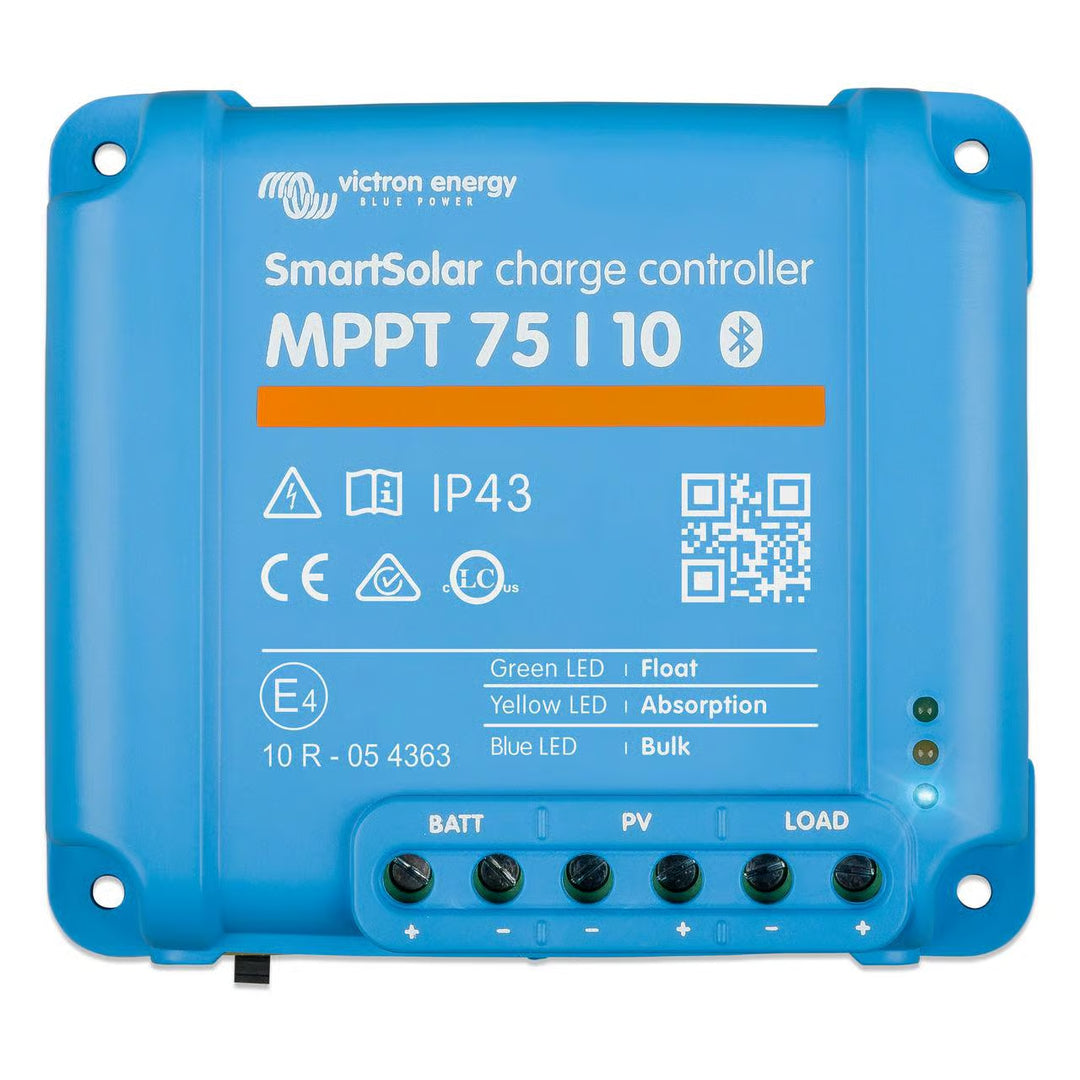

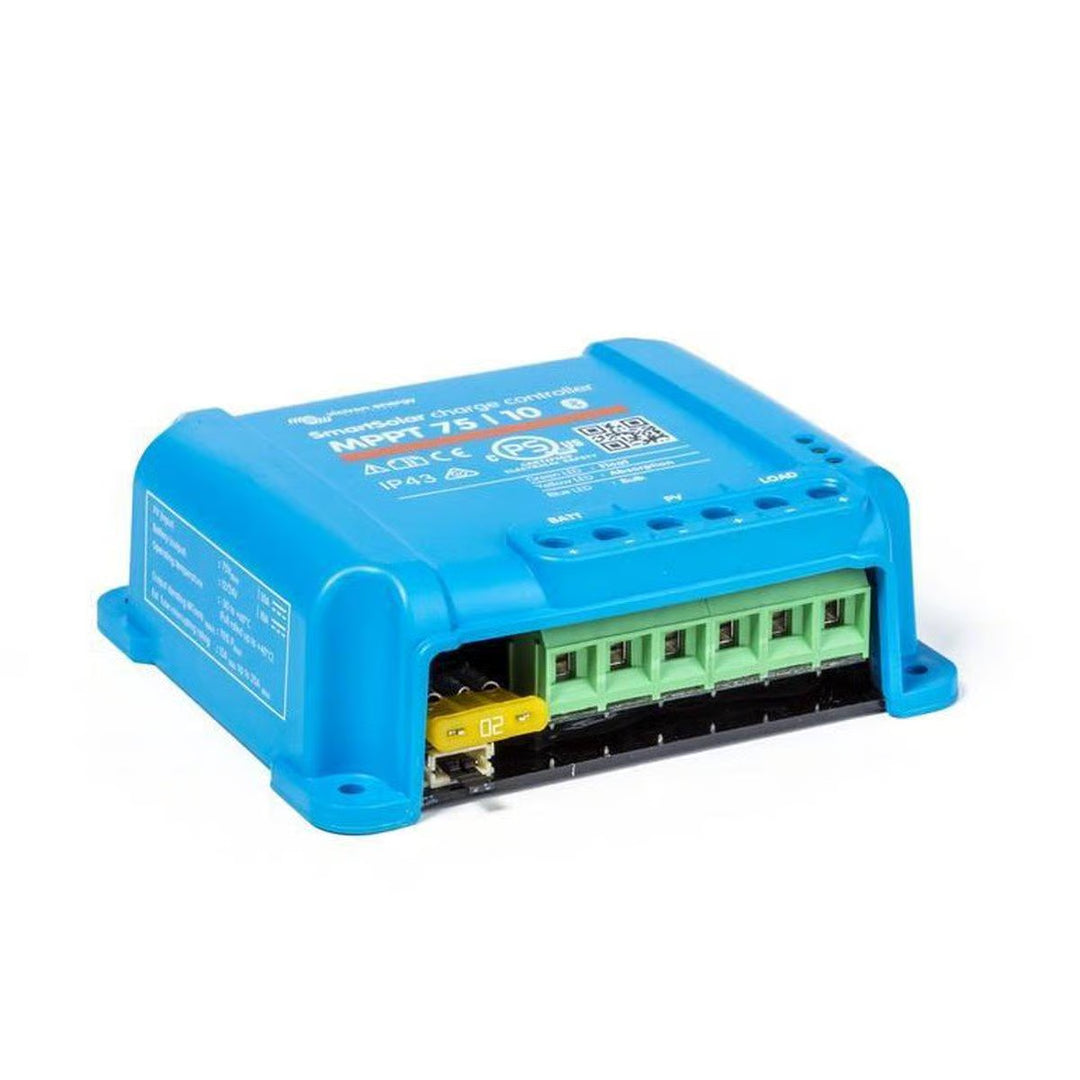

Victron SmartSolar MPPT 75/10
Victron SmartSolar MPPT 75/10
- Ultra-Fast MPPT Technology
- Built-in Bluetooth Smart
- Intelligent Battery Protection
The Victron Energy SmartSolar MPPT is equipped with advanced technology designed to maximize solar energy harvesting while protecting your batteries. With up to 98% efficiency and natural convection cooling, it delivers reliable performance and is built to withstand demanding operating conditions.
Its ultra-fast Maximum Power Point Tracking (MPPT) technology optimizes the energy harvested from your solar panels, even when sunlight conditions fluctuate. Intelligent charging algorithms ensure efficient charging, help maintain battery health, and extend battery life.
For added reliability, built-in protection features help safeguard your system against overheating, short circuits, and reverse polarity, ensuring safer and more dependable operation.
Victron Energy SmartSolar MPPT — intelligent solar charging for maximum performance, reliable protection, and longer battery life.
Key Features of the Victron Energy SmartSolar MPPT
|
Specification |
Details |
|---|---|
|
Rated charge current |
10 A |
|
Battery voltage |
12 V / 24 V, automatic selection |
|
Maximum PV open-circuit voltage |
75 V |
|
Maximum PV short-circuit current |
13 A |
|
Nominal PV power (12 V system) |
145 W |
|
Nominal PV power (24 V system) |
290 W |
|
Peak efficiency |
98% |
|
Charge algorithm |
Multi-stage adaptive or user-defined |
|
Maximum continuous load current |
15 A |
|
Data connection |
VE.Direct |
|
Bluetooth |
Built-in on SmartSolar model |
|
Operating temperature |
-30°C to +60°C |
|
Cooling |
Natural convection |
|
Protection |
Reverse PV polarity, output short circuit, over-temperature |
|
Protection rating |
IP43 (electronics), IP22 (connection area) |
|
Weight |
0.5 kg |
|
Dimensions (H × W × D) |
100 × 113 × 40 mm |
| Net Weight | 1.10lbs |
| Dimensions | 100 × 113 W × 40 mm |
