Maximize space and maintain a sleek interior with the Tetravan In-Floor Shower Pan—designed to recess seamlessly into your camper van floor. This straightforward solution offers a clean alternative to the Tetravan Folding Shower, keeping your shower area functional yet unobtrusive.

Key Features:

• Recessed Design: Installs slightly over 1" below your floor surface, preserving headroom—ideal for taller van layouts.

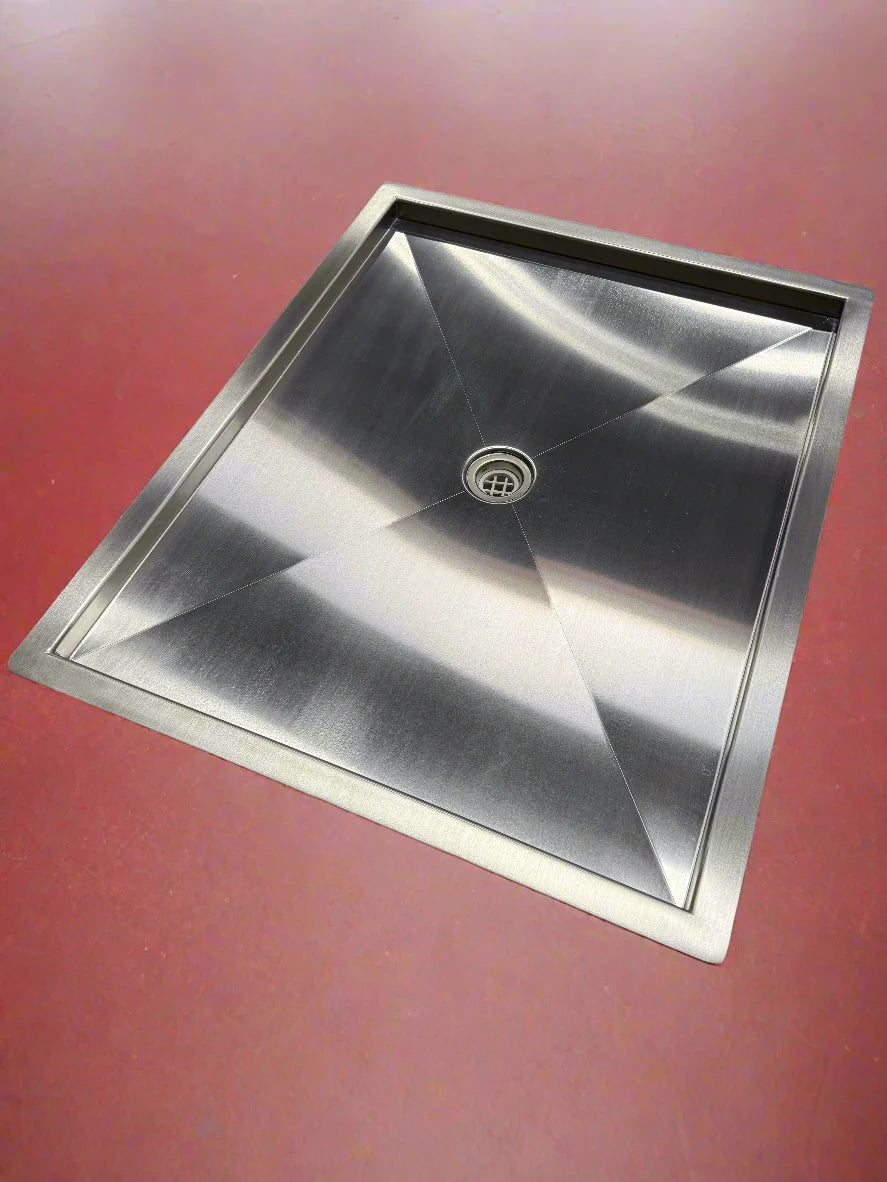

• Durable Construction: Made from magnetic brushed stainless steel, designed for long-lasting use and easy maintenance.

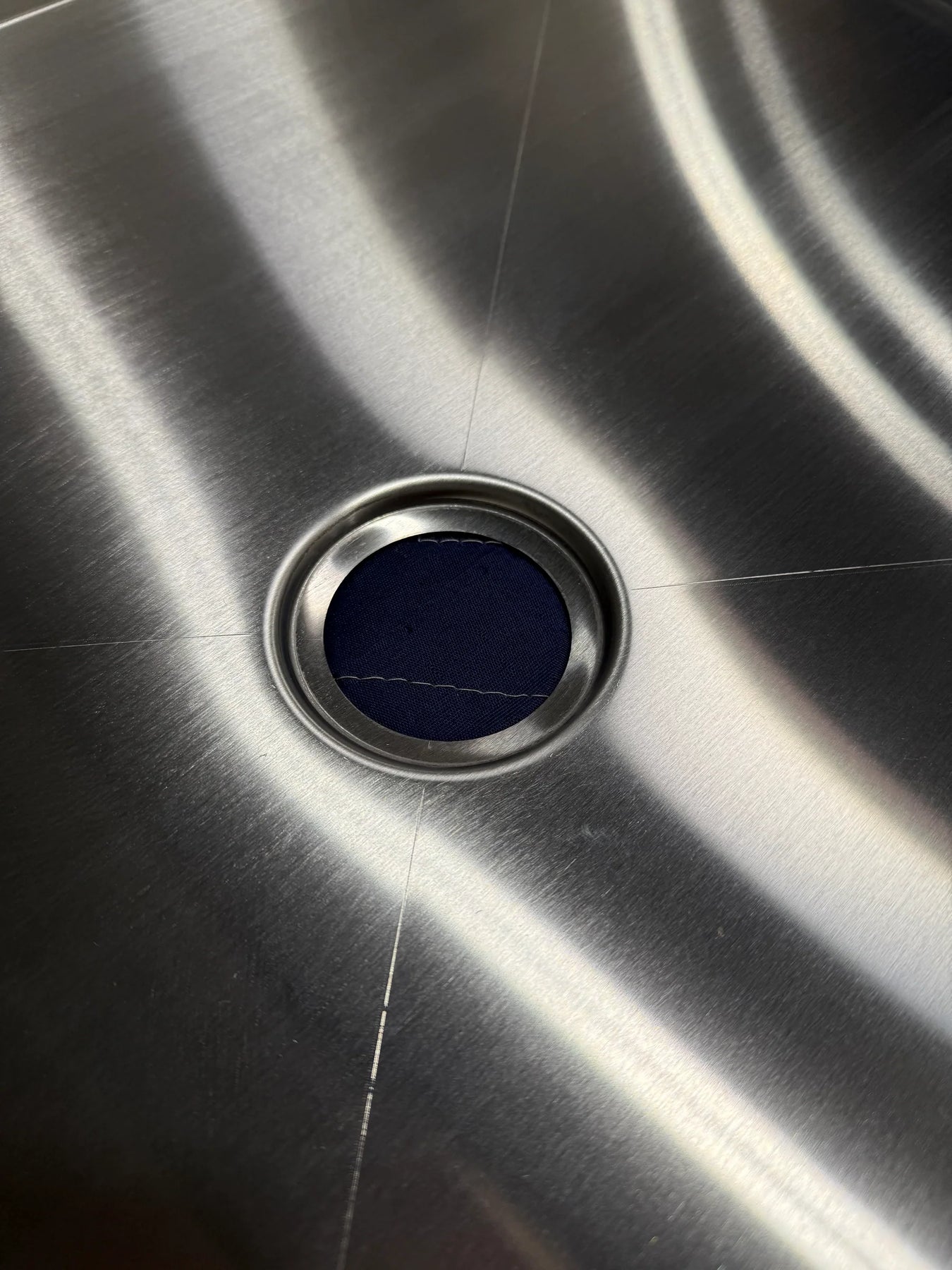

• Efficient Drainage: Cross break at the bottom and recessed drain hole direct water to the included 1-1/2" threaded drain fitting.

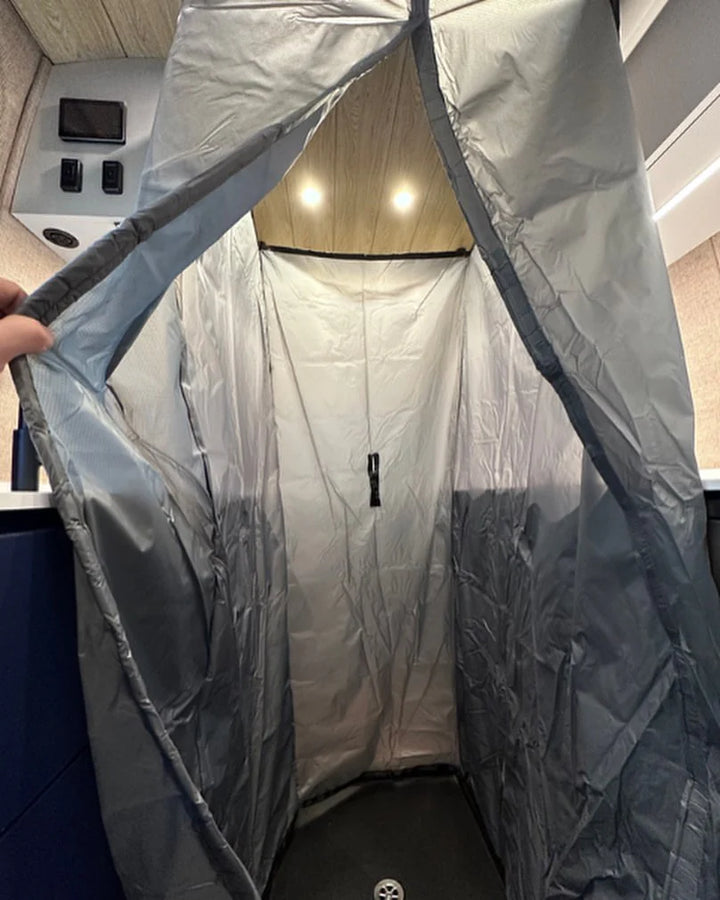

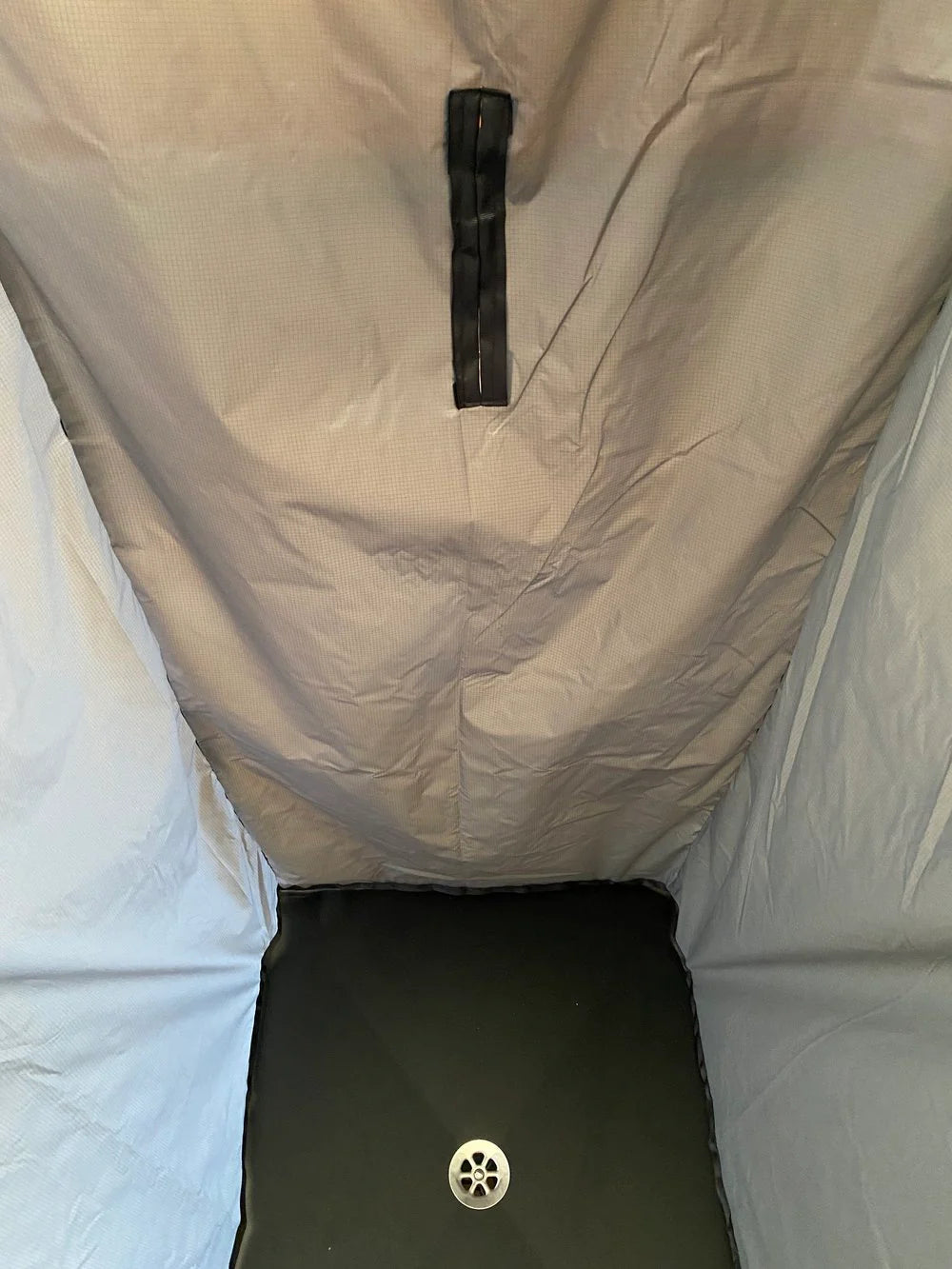

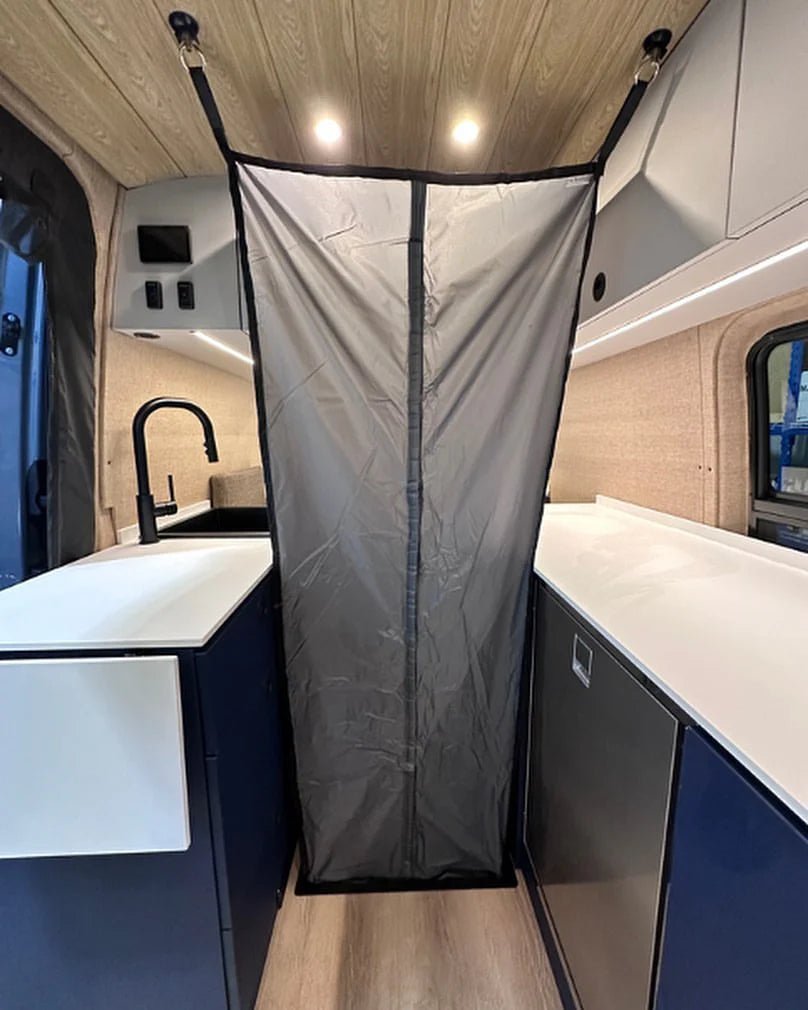

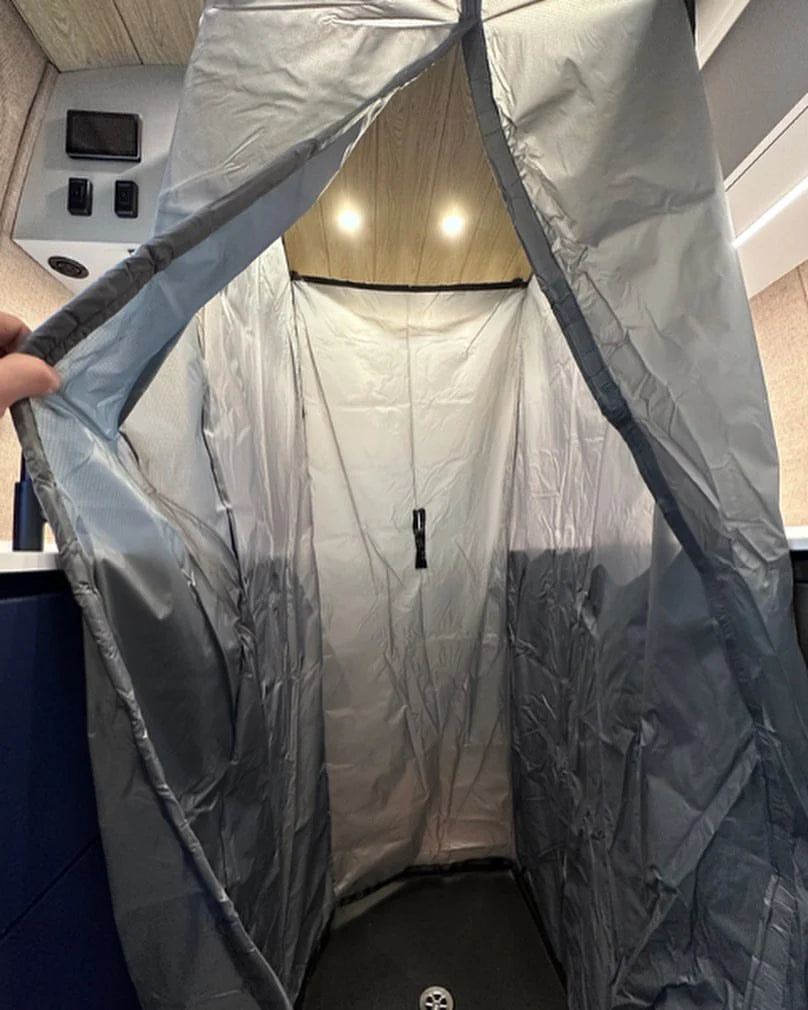

• Optional Shower Curtain: Magnetic, zippered, waterproof ripstop curtain (71" tall) attaches securely to the pan. Expands to 30" width at the top for extra shoulder space and can be extended with 6" extenders. Adjustable mounting via loops and grommets.

Included:

• Tetravan In-Floor Shower Pan

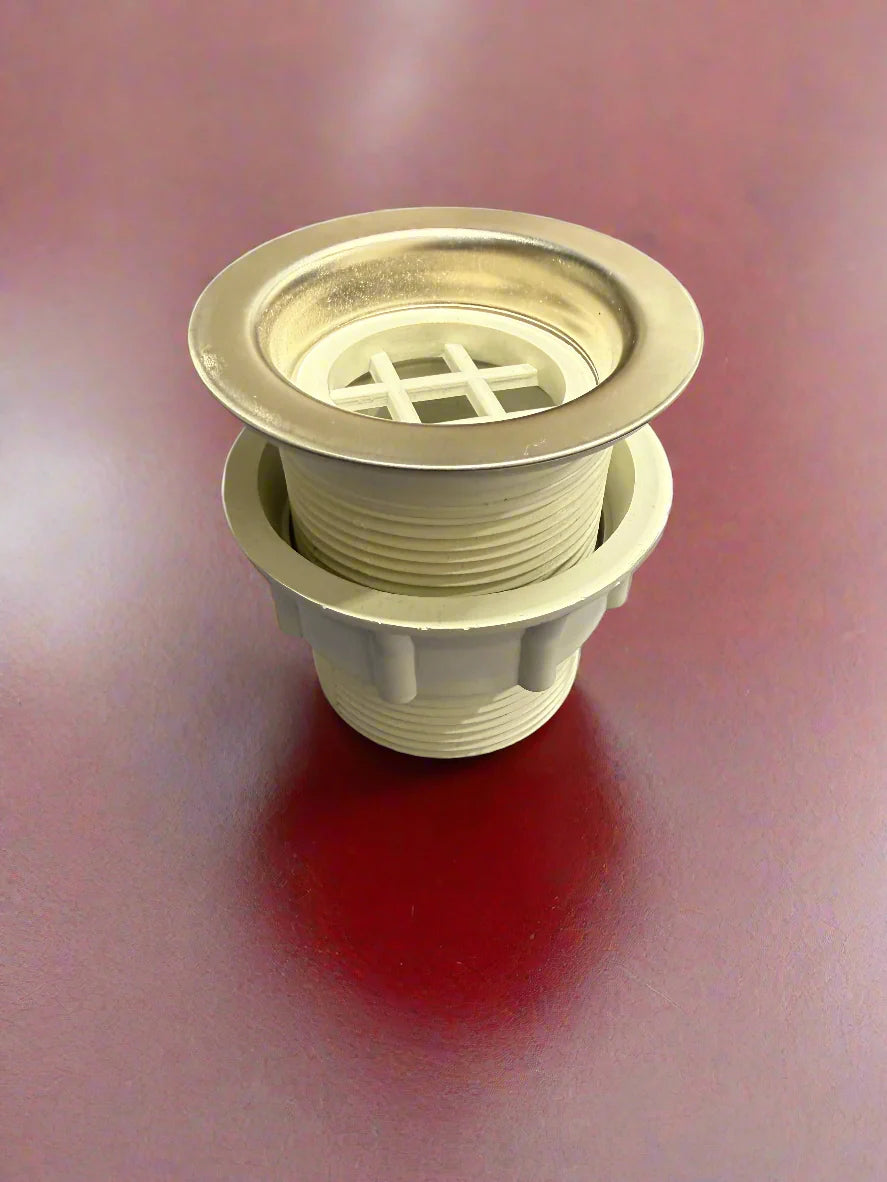

• 1-1/2" threaded straight drain

• Optional: Tetravan Universal Shower Curtain (magnetic, waterproof ripstop, 71" tall)

Installation Notes:

• Ensure your van is level; Dodge Promaster vans may require a leveling kit due to stock front slope.

• Recommended installation: Use a purpose-appropriate adhesive under the flange plus at least 1" countersunk screws into the subfloor for secure mounting.

Specifications:

• Pan Material: 2mm laser-cut duplex stainless steel

• Optional Curtain Material: Gray waterproof nylon ripstop with sewn-in magnets

• Drain Size: 1-1/2"

• Dimensions: Outer: 30" x 24", Inner: 28" x 22", Max Depth: 1.31"

• Weight: 25 lbs

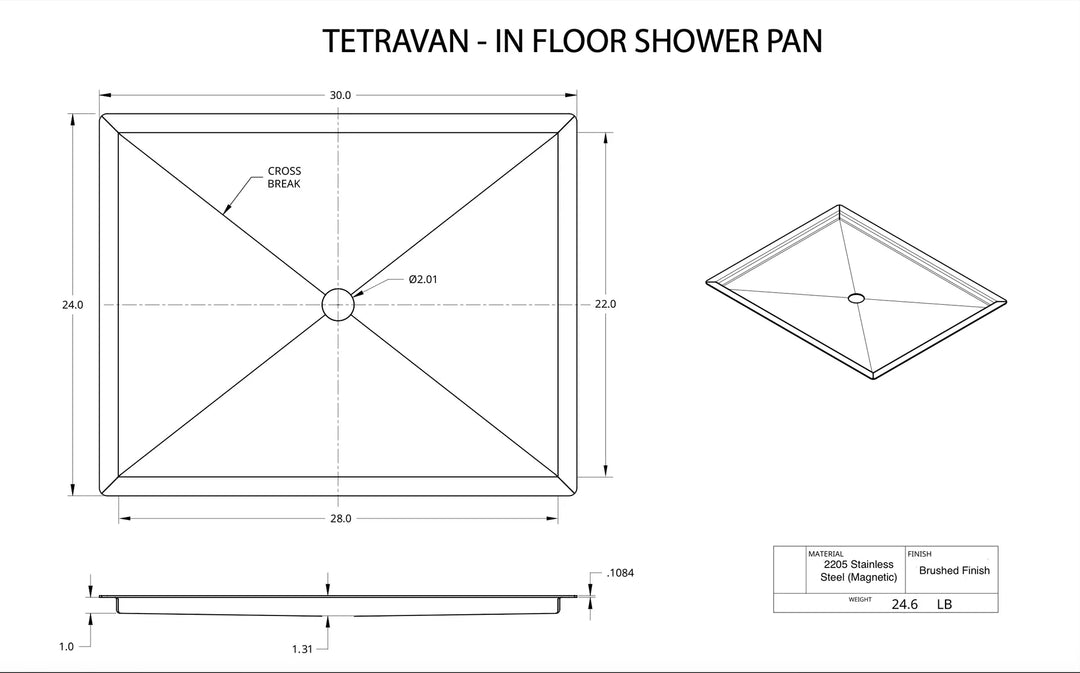

• Technical Drawing: See Here

This pan is designed to be installed into the surface of your van’s floor and has a depth of 1" below the floor surface.

The pan has not been predrilled with any mounting holes, but holes can be drilled in the top flange or the inside vertical edge.

Important note: your van needs to be level for this product to work. If you have a Dodge Promaster, which comes stock sloped downward in the front, you will need to install a leveling kit to use this product.
