Blue Sea ANL Fuse Holder
Blue Sea ANL Fuse Holder
- Supports high-current applications from 35A to 750A.
- Corrosion-resistant stainless steel studs and tin-plated copper contacts.
- Swing-out design and protective cover provide quick, convenient access.
Protect your high-current electrical system with the Blue Sea ANL Fuse Holder. Designed for 12V, 24V, and 32V DC systems, this heavy-duty fuse block provides a secure, corrosion-resistant connection for batteries, inverters, alternator chargers, and other high-amperage circuits. Available in two models to support applications from 35A up to 750A.
-
Heavy-duty ANL fuse holder for high-current DC systems
-
Insulated protective cover with multi-directional cable access
-
Corrosion-resistant stainless steel studs and tin-plated copper contacts
-
Compatible with 12V, 24V, and 32V battery systems
The Blue Sea ANL Fuse Holder is designed to provide dependable overcurrent protection for high-current DC electrical systems. Its rugged construction and protective insulating cover make it well suited for camper vans, RVs, marine applications, and off-grid power systems.
The fuse block features stainless steel studs for corrosion resistance and reliable electrical contact, along with tin-plated copper fuse mounting blocks for excellent conductivity. The swing-out design allows the fuse to be replaced without removing the mounting fasteners.
The insulating cover provides access from any direction while satisfying ABYC/USCG insulation requirements. The base is constructed from UL 94-V0 reinforced polycarbonate for excellent heat resistance

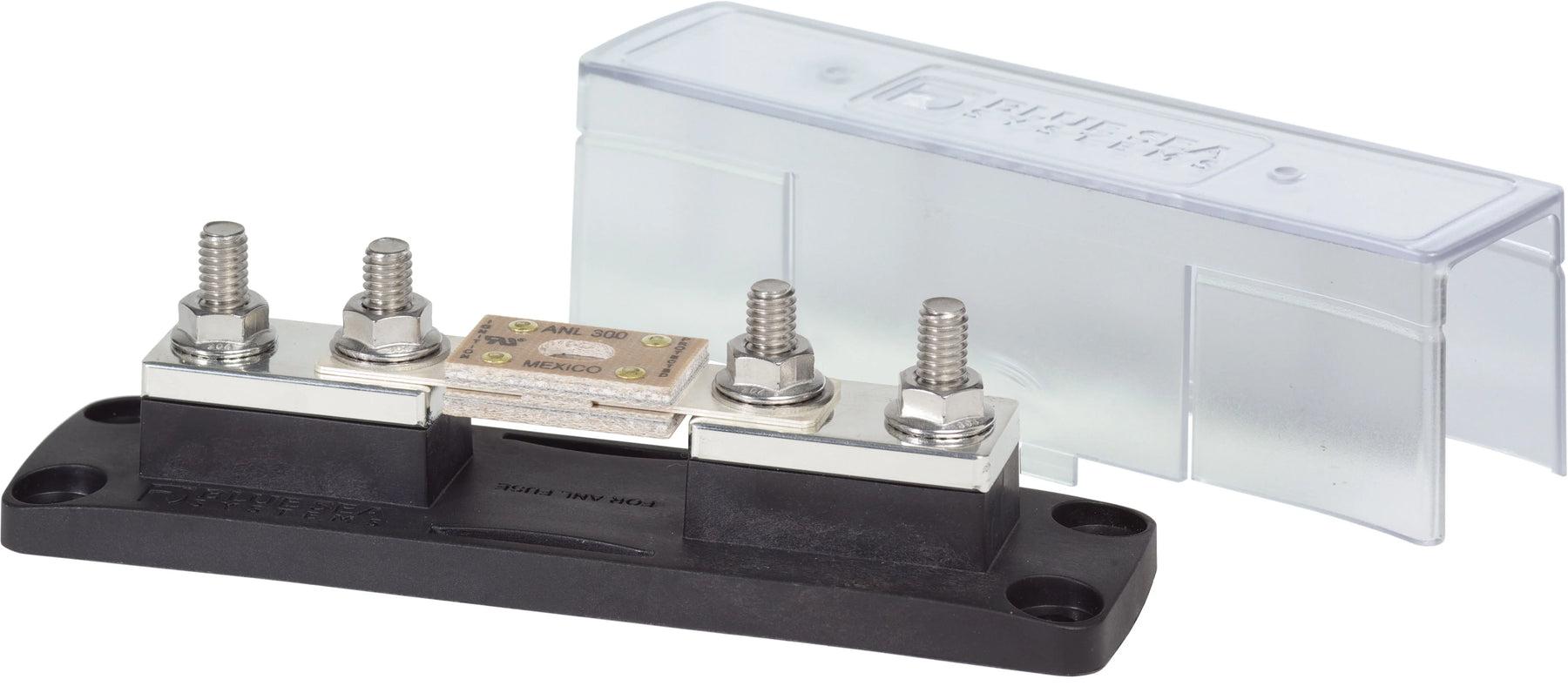

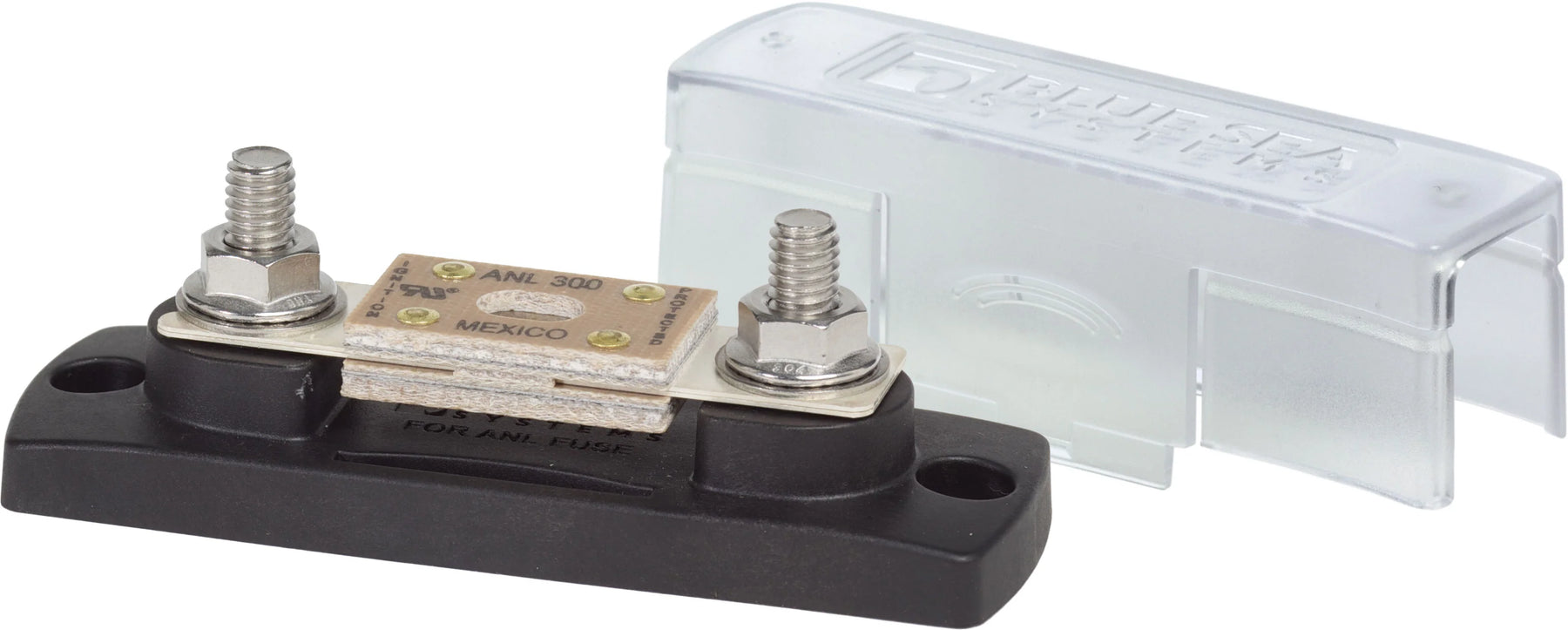

Choose between the BSS 5005 for systems up to 300A or the BSS 5503 for larger installations up to 750A. Both models include an insulating cover, ignition-protected construction, and premium corrosion-resistant hardware for long-term durability.
Note: ANL fuses are sold separately.
What's Included
-
1 × Blue Sea ANL Fuse Holder
-
Insulating protective cover
| Feature | BSS 5005 | BSS 5503 |
|---|---|---|
| Max Amps | 300A | 750A |
| Max Torque | 110 in-lb | 107 in-lb |
| Mounting | #10 | 1/4" |
| Cable Size | 2/0 AWG | 4/0 AWG |
| ANL Fuse Range | 35–300A | 35–750A |
| Max System Voltage | 32V DC | 32V DC |
| Terminal Studs | 5/16"-18 (M8) | 5/16"-18 (M8) |
| Cover | Insulating cover included | Insulating cover included |
| Dimensions | H: 1.649" × W: 1.5" × L: 4.5" | H: 2.3" × W: 2" × L: 7" |
| Base Material | UL 94-V0 reinforced polycarbonate | UL 94-V0 reinforced polycarbonate |
| Fuse Mounting Blocks | Tin-plated copper | Tin-plated copper |
| Ignition Protection | Yes | Yes |
