Upgrade your Transit with a factory-style vented window designed for precise fitment, improved airflow, and clean installation. This rear quarter window is engineered to match OEM styling while adding functional ventilation through a crank-out panel with an integrated removable screen.

Vehicle-Specific Fit

• Designed for 2015+ Ford Transit 148" WB regular-body vans
• Not compatible with 130" WB or 148" extended-body models

Factory-Matched Appearance

• 28% dark gray tint aligns with OEM glass styling

Ventilation System

• Bottom crank-out panel for airflow
• Detachable bug screen included

Durable & Safe Construction

• Tempered glass for strength and safety
• Meets ANSI Z26.1 and FMVSS 205 standards

Simplified Installation

• Uses factory stampings for accurate cut lines
• Clamp-in design—no adhesive or primer required

Made in USA

• Manufactured by CR Laurence

Product Overview

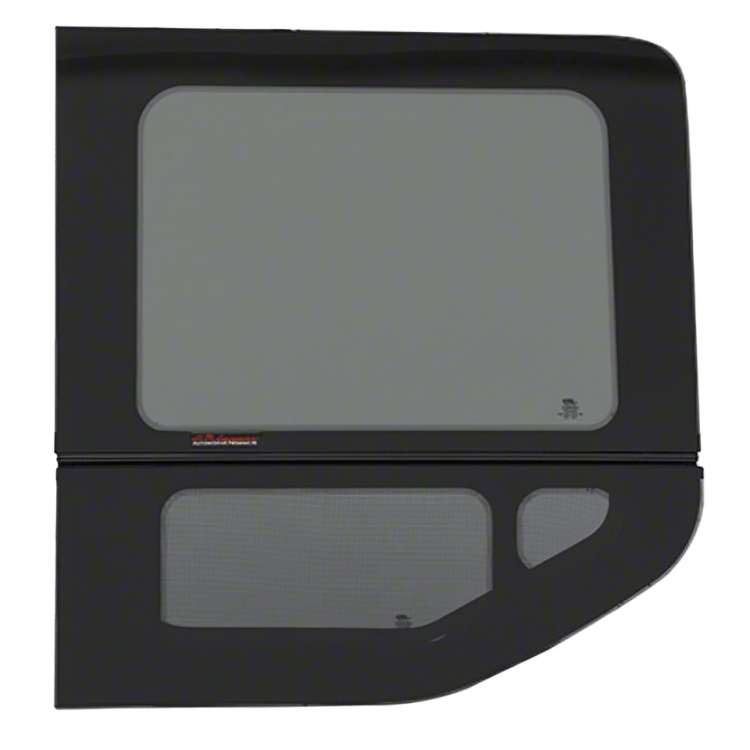

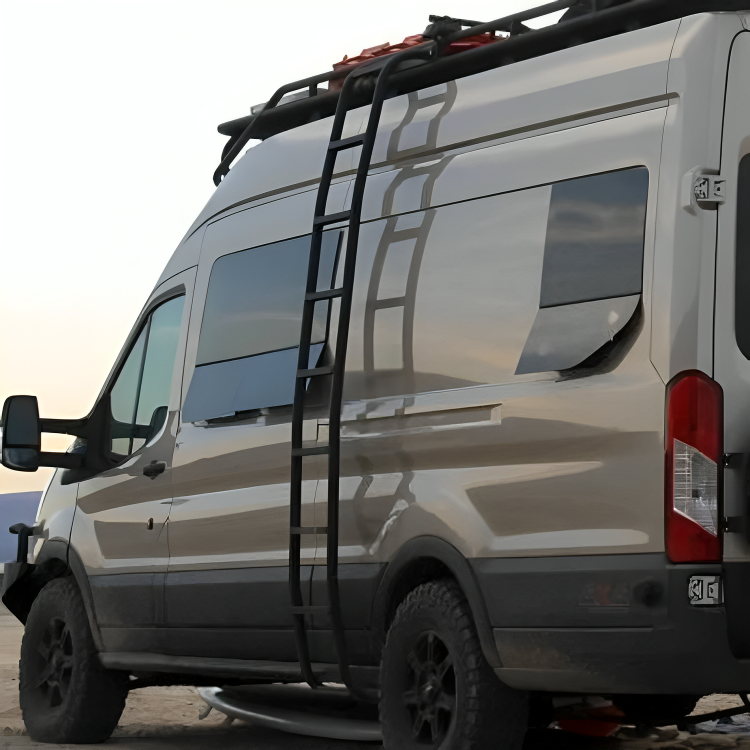

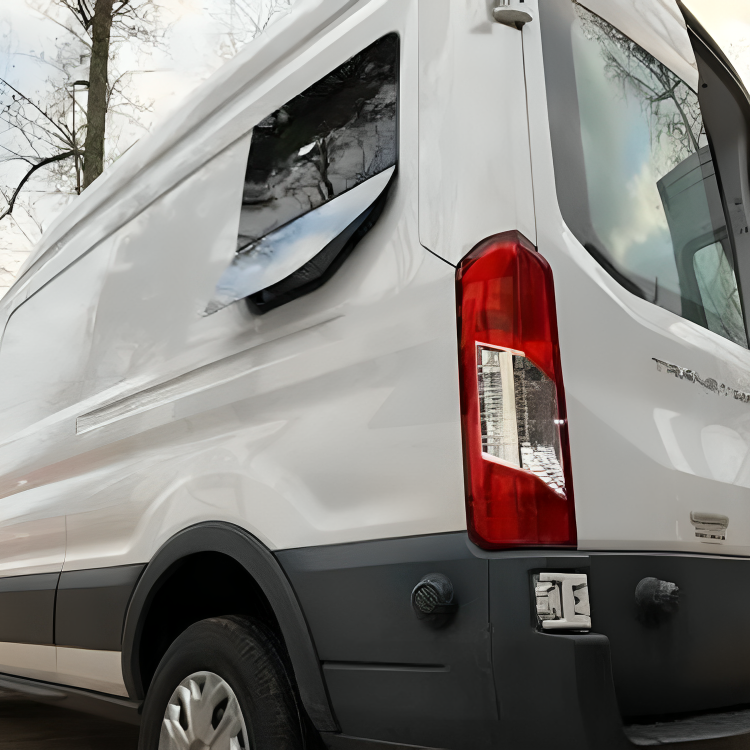

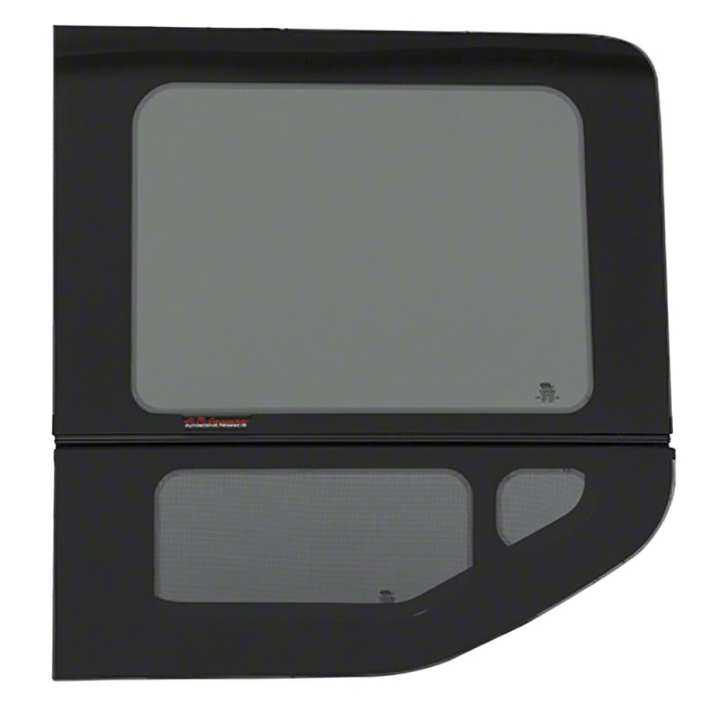

The CRL FW294 series rear quarter vented window is built to fit factory window cutouts, eliminating guesswork during installation and reducing labor time. Its low-profile design integrates seamlessly with your van’s exterior while delivering added airflow through the vented panel—ideal for camper builds and work vans alike.

Compatibility

Fits:

• 2015+ Ford Transit Cargo Van 148" WB (Regular Body)
• High Roof and Medium Roof models

Does NOT Fit:

• 130" WB models
• 148" WB Extended Body
• Transit 350 HD / 350 HD XLT

For extended-body vans, see FW297 series windows.

Specifications

• Height: 26.5"
• Width: 28.2"
• Weight: 35 lbs
• Tint: 28% Dark Gray
• Window Type: Clamp-in, Single Vent with Screen

Installation Notes

• Clamp-in windows cannot replace factory glass due to larger cut-out requirements
• Opening must be cut to match clamp ring specifications
• Recommended cutting method: center-blade shear (cleaner cut, less vibration vs. jigsaw)
• Seal exposed edges with paint to prevent corrosion
• Use hand tools only for tightening (avoid power tools on trim ring screws)
• Refer to AW3310 clamp-in installation guide for full instructions

Fits Ford Transit 148
Does not fit Transit 136 or Transit 148 EXT
