The Nova Kool R5812 is a premium 162-liter all-refrigerator designed for RVs, camper vans, boats, and off-grid applications. Built with a highly efficient Danfoss BD Series variable-speed compressor, it delivers reliable cooling while consuming minimal power, making it an excellent choice for solar-powered and battery-operated systems.

Designed to perform even in demanding environments, the R5812 operates efficiently at ambient temperatures up to 30°C and continues cooling while the vehicle is tilted up to 30° off level.

Energy Efficient Performance

The R5812 is engineered for low power consumption without sacrificing cooling performance.

• Draws only 4.4 amps at 12V DC while the compressor is running
• Uses less than 0.5 amps on the optional 120V AC module
• Average power consumption is under 45Ah per day at a 30°C ambient temperature (actual usage varies depending on temperature, thermostat settings, and door openings)
• Compatible with the optional AC/DC Module for dual-voltage operation

Key Features

• 162L (5.8 cu. ft.) all-refrigerator design with no freezer compartment
• High-efficiency Danfoss BD Series variable-speed compressor
• Compressor cooling fan included

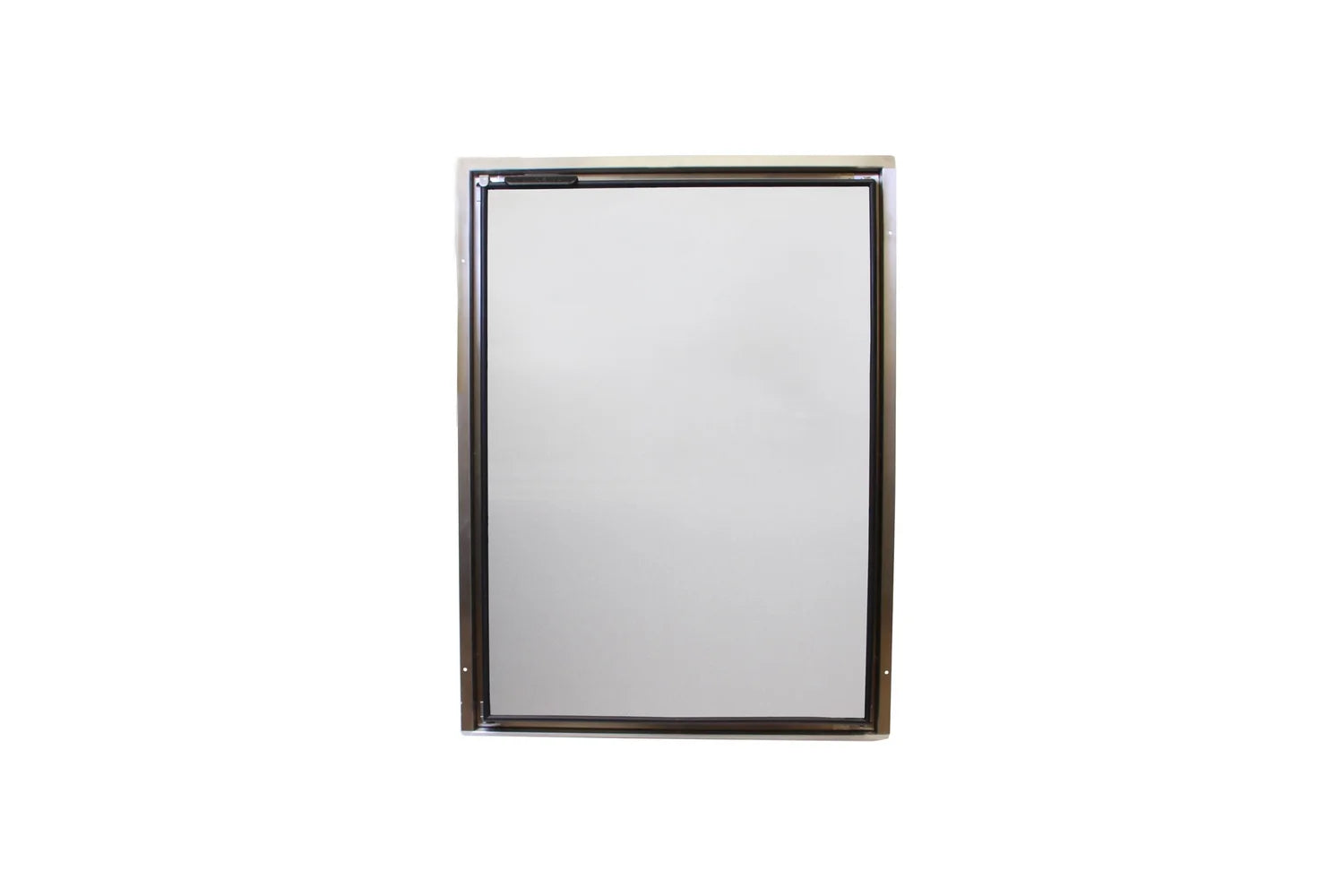

• Durable brushed stainless steel door panel and stainless steel mounting frame
• Positive door latch for secure travel
• Reversible door swing for flexible installation

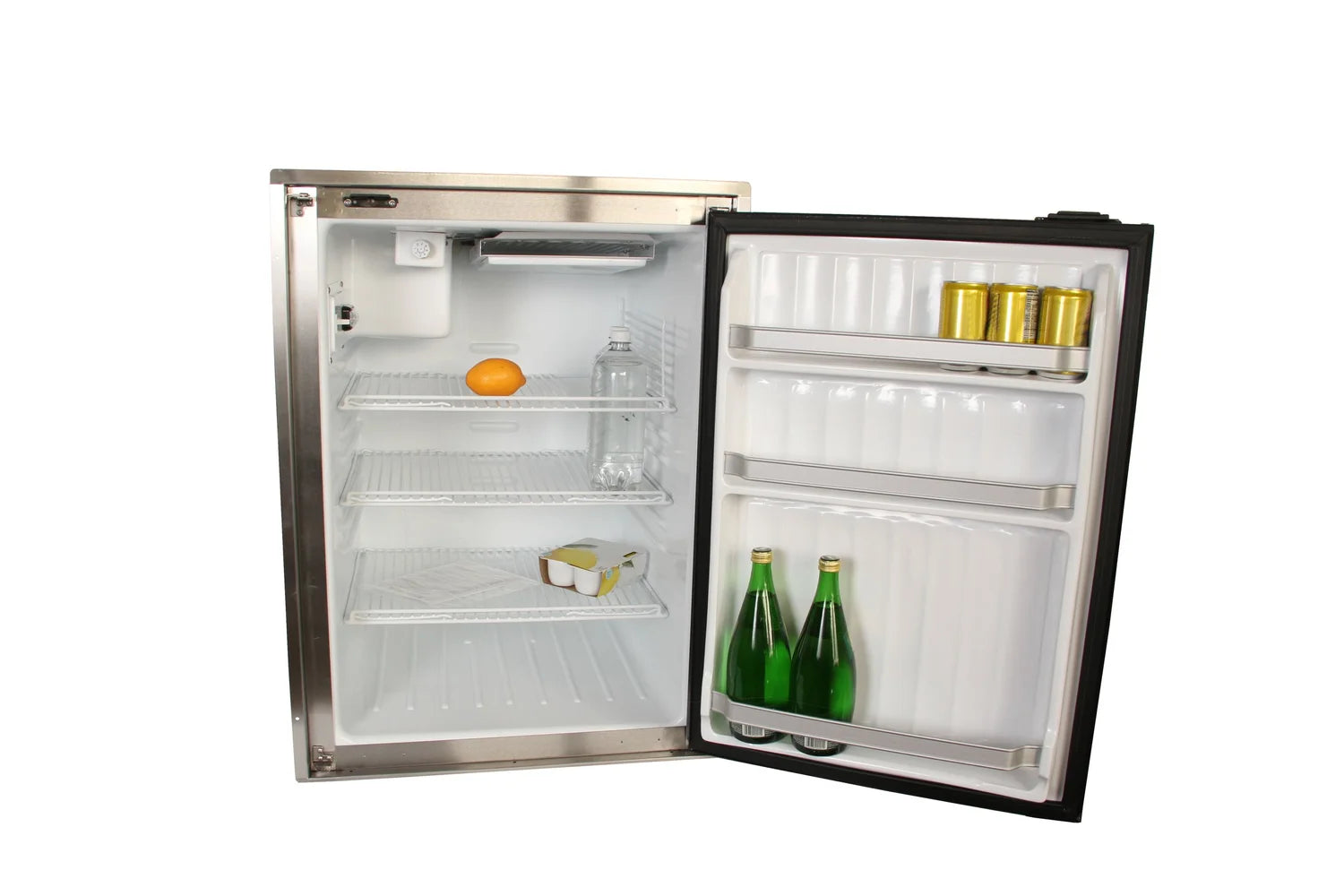

• Tall bottle storage

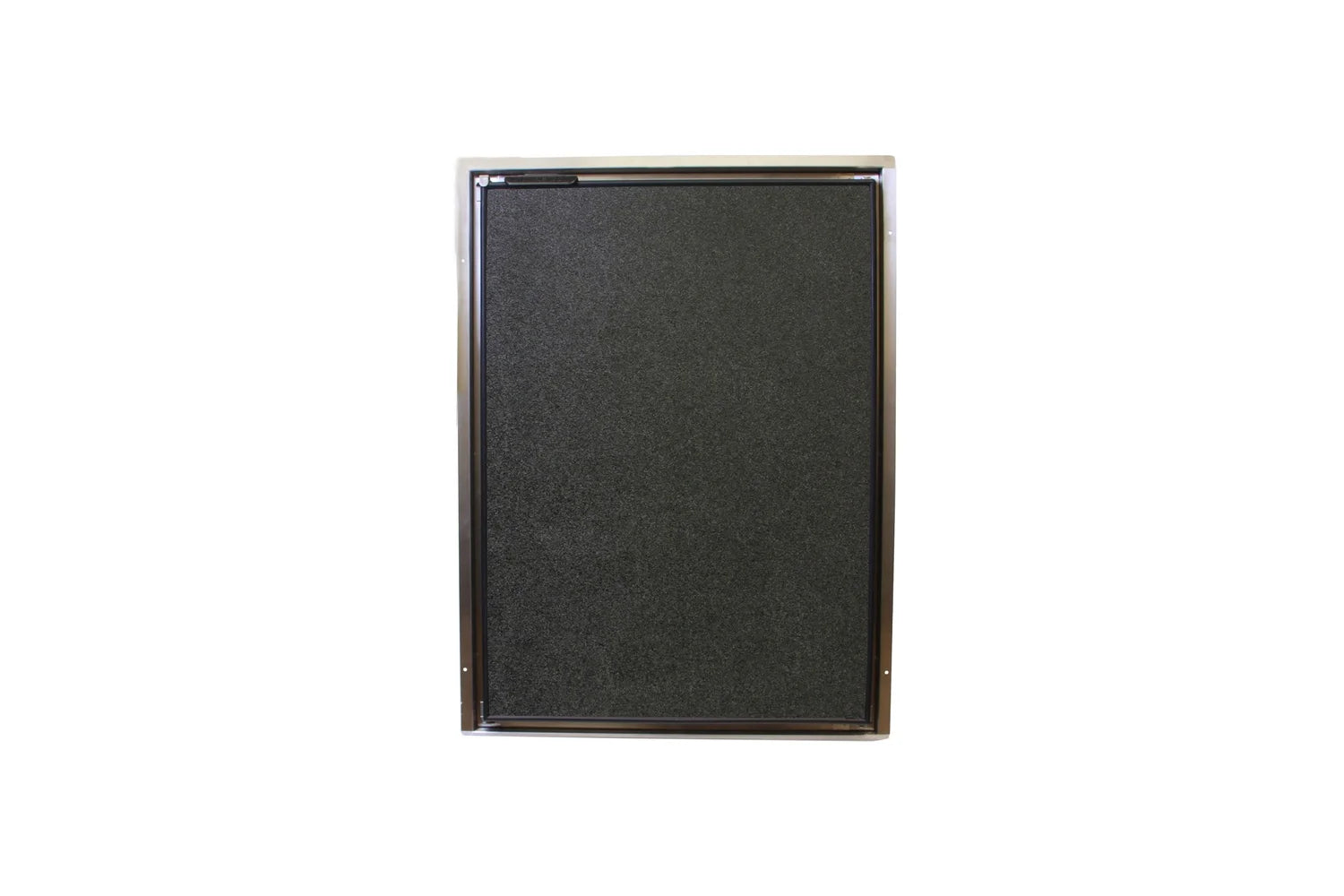

• Replaceable door panels for a custom interior finish
• Interior LED light included
• Low battery protection helps prevent excessive battery discharge
• Environmentally friendly R134a refrigerant
• CFC-free urethane foam insulation
• Magnetic door gasket for a secure seal

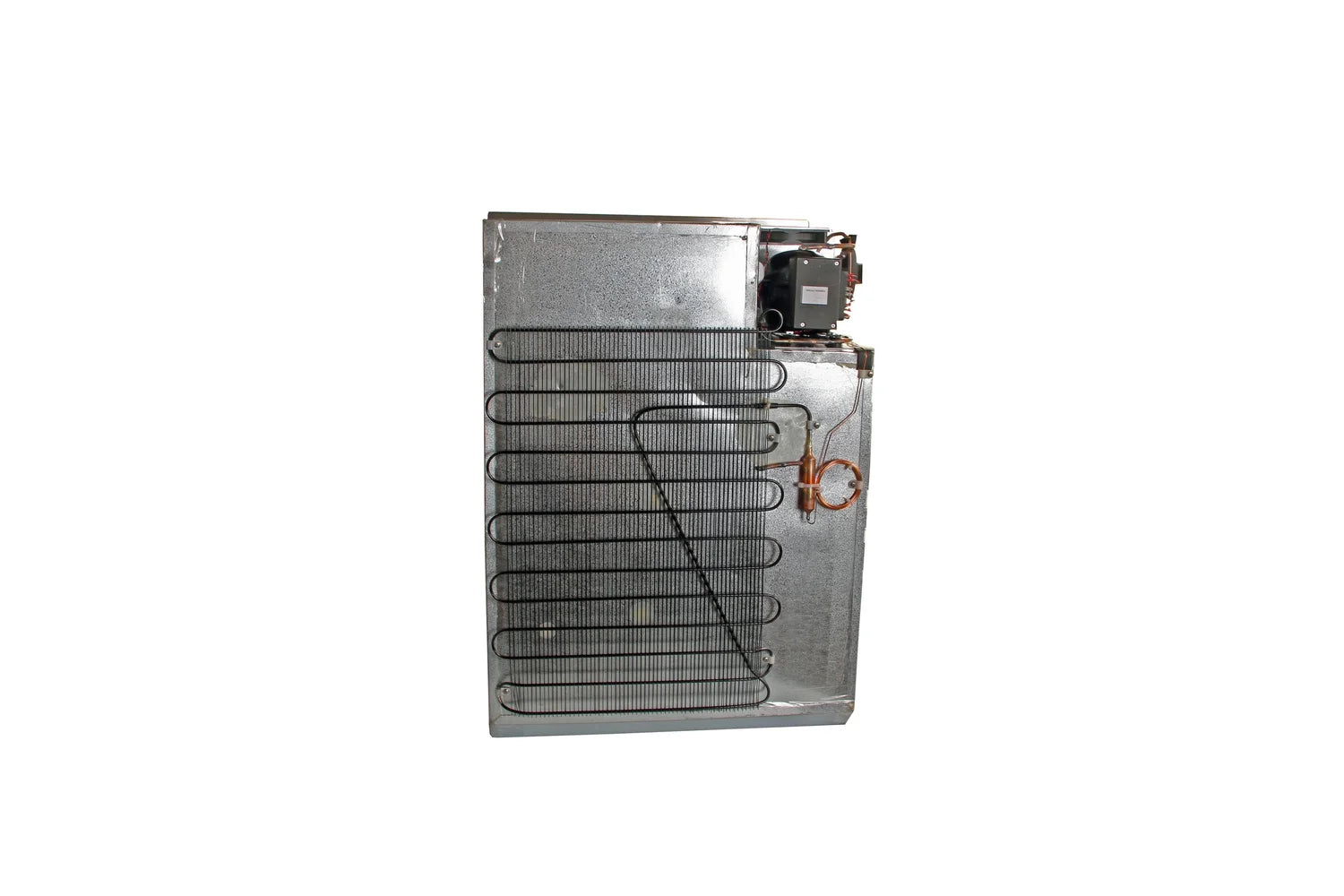

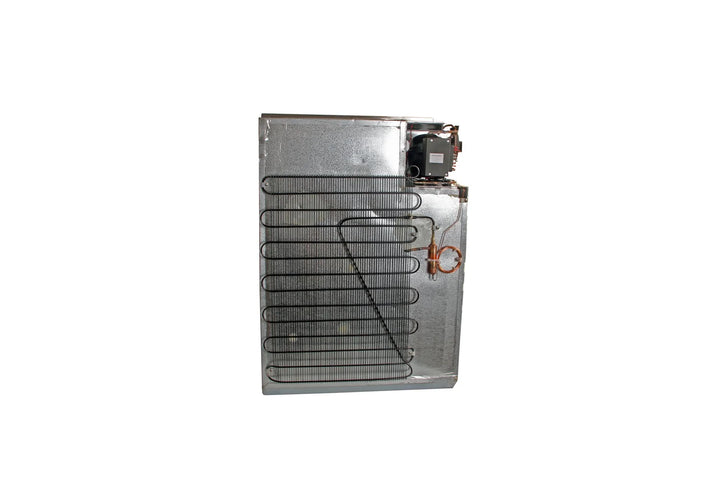

• Static condenser for easy maintenance and efficient operation
• Stainless steel hinges and fasteners throughout
• Heavy-duty stainless steel mounting flanges
• Manufactured in Canada
• Backed by Nova Kool's 2-Year Limited Warranty

Door Configuration

The refrigerator comes standard with a right-hand hinge, but the door is fully reversible. A left-hand hinge configuration is available upon request at no additional charge and can be factory-configured before shipping.

Capacity

• Total Internal Volume: 162 Liters (5.8 cu. ft.)
• Refrigerator compartment only (no freezer)

Cutout Dimensions

• Height: 805 mm
• Width: 587 mm
• Depth: 560–605 mm (adjustable)

Overall Dimensions

• Height: 840 mm
• Width: 622 mm
• Depth: 618 mm (including door and latch)

Adjustable Mounting Frame

The R5812 features an adjustable mounting frame to simplify installation in various cabinet depths.

• Adjustable installation depth from 560 mm to 605 mm
• Door can be positioned flush with the mounting flange or extended forward to reduce cabinet depth
• Mounting flange dimensions:
  • Left & Right: 12 mm
  • Top: 13 mm
  • Bottom: 5 mm
• The mounting flange can also be rotated to accommodate lower countertop installations.

Other Novakool Sized Fridges:

• NovaKool R1900 DC & AC/DC 12V Refrigerator: Fridge Volume:  1.9 cu. ft. (54 liters) | Freezer Volume: 0.21 cu. ft. (6 liters)
• NovaKool R2300 DC 12V Refrigerator: Fridge Volume:  2.1 cu. ft. (59 liters) | Freezer Volume: 0.25 cu. ft. (7.1 liters)
• NovaKool R2600 DC & AC/DC 12V Refrigerator: Fridge Volume:  2.4 cu. ft. (68 liters) | Freezer Volume: 0.14 cu. ft. (4 liters)
• NovaKool R3000 DC & AC/DC 12V Refrigerator: Fridge Volume:     2.5 cu. ft. (70 liters) | Freezer Volume: 0.25 cu. ft. (7.1 liters)
• NovaKool R3100 DC 12V Refrigerator: Fridge Volume:    3.1 cu. ft. (87 liters) | Freezer Volume: 0.33 cu. ft. (9.3 liters)
• NovaKool R3800 DC & AC/DC 12V Refrigerator: Fridge Volume:  3.5 cu. ft. (100 liters) | Freezer Volume: 0.4 cu. ft. (11.3 liters)

• NovaKool R4500 DC & AC/DC 12V Refrigerator: 4.3 cu. ft. (122 liters) | Freezer Volume: 0.6 cu. ft. (17 liters)
• NovaKool R5810 DC & AC/DC 12V Refrigerator: Fridge Volume:  5.8 cu. ft. (164 liters) | Freezer Volume: 0.4 cu. ft. (11.3 liters)
• NovaKool RFU6200 DC & AC/DC 12V Refrigerator: Fridge Volume:  6 cu. ft. (170 liters) | Freezer Volume: 2.5 cu. ft. (71 liters)
• NovaKool RFU6400D DC & AC/DC 12V Refrigerator: Fridge Volume:  6.8 cu. ft. (193 liters) | Freezer Volume: 1.8 cu. ft. (51 liters)
• NovaKool RFU7300 DC 12V Refrigerator: Fridge Volume:  6.8 cu. ft. (192 liters) | Freezer Volume: 1.7 cu. ft. (48 liters)
• NovaKool RFS7501 DC & AC/DC 12V Refrigerator: Fridge Volume:  7.5 cu. ft. (212 liters) | Freezer Volume: 2 cu. ft. (57 liters)
• NovaKool RFU8220 DC & AC/DC 12V Refrigerator: Fridge Volume:  7.3 cu. ft. (206 liters) | Freezer Volume: 1.6 cu. ft. (45 liters)
• NovaKool RFU8320 DC & AC/DC 12V Refrigerator: Fridge Volume:  7.3 cu. ft. (206 liters) | Freezer Volume: 1.6 cu. ft. (45 liters)
• NovaKool RFU9000 DC & AC/DC 12V Refrigerator: Fridge Volume:  9.1 cu. ft. (258 liters) | Freezer Volume: 2.5 cu. ft. (70.8 liters)

What is the difference between the R5810 and R5812 fridge models?
The primary difference between the Nova Kool R5810 and R5812 models lies in their internal configurations:

R5810: This model is a refrigerator with a freezer compartment, offering a total capacity of 5.8 cubic feet (164 liters). The freezer compartment occupies 0.4 cubic feet (11.3 liters) of this space.

R5812: In contrast, the R5812 is an all-refrigerator model without a freezer compartment, providing the full 5.8 cubic feet (164 liters) exclusively for refrigeration purposes.

Both models share several features, including a positive latch system, storage for tall bottles, powder-coated zinc wire shelves for durability, and replaceable door panels for customization. They come standard with a brushed stainless steel door panel and adjustable mounting flange. Additionally, both models are available in DC-only (12/24V) or AC/DC configurations.
