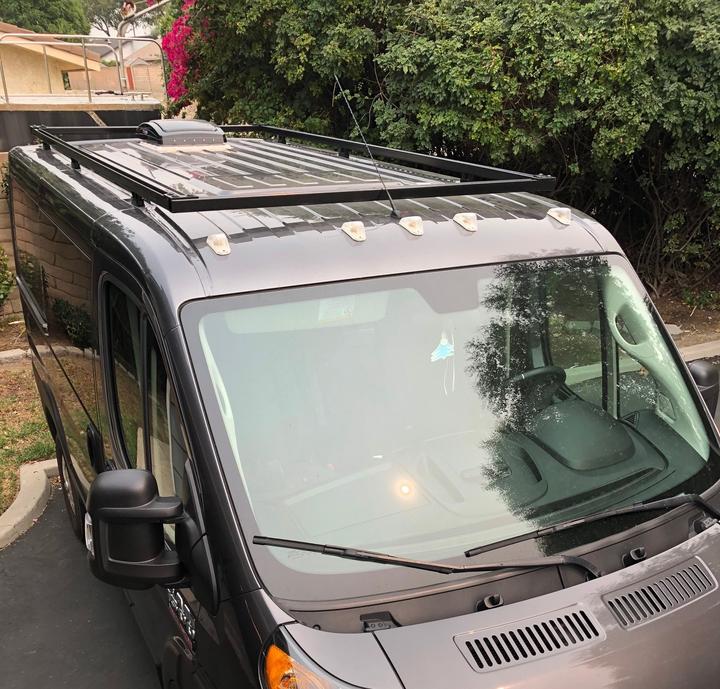

These roof rack brackets from Unaka will allow you to create a custom roof rack system using 8020, unistrut, or other custom solutions!
They can also be used to create a custom ladder or a low-profile solar rack, and can be used at any length with any bolt.
This gives you the flexibility to bolt any thickness material to your roof whether it is aluminum extrusion, uni strut, a custom roof rack, or even a 2 x 4. Just simply adjust your bolt length to make up the difference of the thicker material.
Overall Dimensions: 3.125" Long x 1.125" Wide x 1" Tall with 2" center to center bolt hole spacing. **These dimensions do not include the thickness of the rubber on the bottom edges.
Features and Benefits
Easy to Install
Black Anodized 6061 Aluminum is made to withstand all of mother nature's harshest environments
Open profile design eliminates the possibility for water to get trapped under the bracket
Extruded Neoprene Rubber Trim protects the paint on your van where the brackets are installed
Stainless Steel Hardware
Rack Bracket Set Includes
1 x Custom Lower Nut Plate
1 x Custom Support Channel with neoprene trim
1 x SS Hardware Kit which includes two SS Hex Bolts 5/16”-18 x 1.125” LG and two SS 5/16” washers)
We recommend adding some Blue 242 Loctite to the threads of your bolts when you do the final installation. Even though we do not expect any, we recommend that you periodically check the hardware to ensure that nothing has loosened over time.

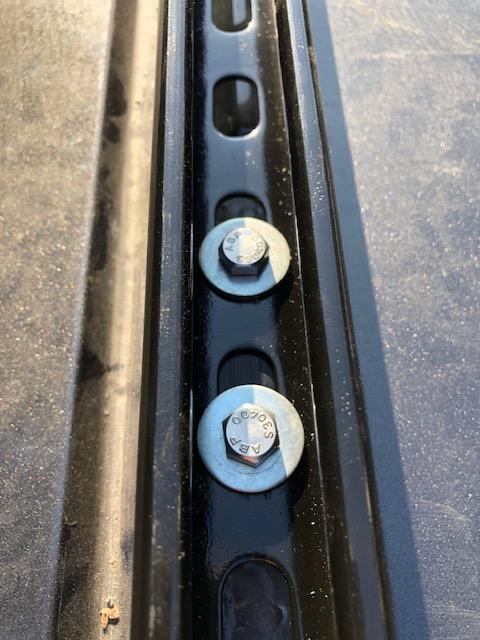

If you are installing these brackets with Uni-Strut the over sized washers we also provide should be used in addition to the standard washers we provide. This is to ensure your hardware will not pull through the larger slots in the Uni-strut.
