Features
  • Dead simple plug and play installation
  • Offers huge power specs compared to competitor options; four ways to charge (solar, alternator, shore power, smart generator).
  • Expandable, stackable batteries; compact, integrated design with an all-in-one inverter hub.
Regular price $8,956.00
/
  • Free Shipping in Canada 🇨🇦
Shipping calculated at checkout.
  • In stock, ready to ship

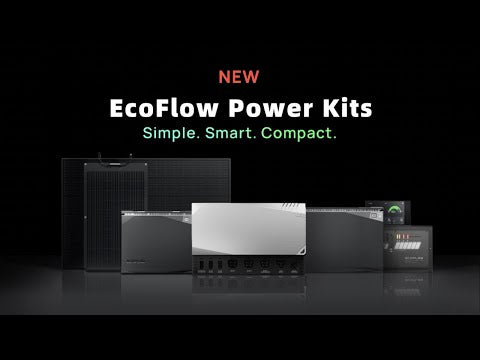

Victron vs. Ecoflow? Watch this video to find out what is right for you.


The EcoFlow power kit is designed to ensure that you have a reliable power source for all your needs. With the Power Kits plug-and-play system, you can easily adapt your hardware to fit your van and power requirements, whether you're replacing or building your van's power system from scratch. With the ability to charge through solar power, van alternator, shore power, and a Smart Generator, you will always have a backup plan in case of an emergency.

EcoFlow presents a compact and scalable power system consisting of four key components:

  1. EcoFlow Power Hub: Encased in a sleek box, this multifunctional unit integrates five components into one, featuring a 3600W pure sine inverter-charger (with a maximum output of 7200W), dual MPPT solar charge controllers, DC/DC converter, DC/DC battery charger, as well as ports and cables for solar, alternator, battery, and generator charging.

  2. EcoFlow Power Kit Console: A 7" full-color LCD touchscreen designed for the control and monitoring of all electrical system inputs and outputs.

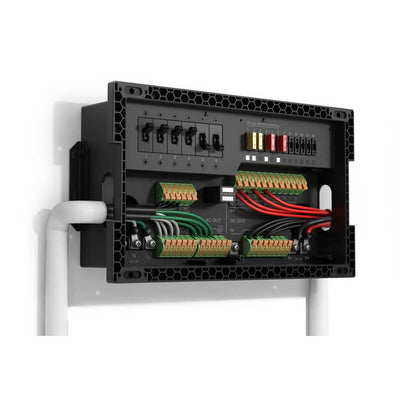

  3. EcoFlow AC/DC Distribution Panel: This three-component panel is tailored for 6 AC circuits and 12 DC circuits. It boasts a transparent exterior faceplate, a removable interior face panel, and a deep connection box equipped with WAGO-style circuit connectors.

  4. EcoFlow Battery: Available in 2 kWh or 5 kWh sizes, the 48-volt lithium EcoFlow batteries are resilient long-life lithium iron phosphate (LiFePO4) batteries. Operating between -4°F to 122°F with built-in auto heating, these batteries are a durable energy solution. A 5 kWh EcoFlow Power Kit typically includes one 5 kWh battery. It's important to note that you have the flexibility to use one to three 2 kWh or 5 kWh batteries in your Power Kit, but the two sizes cannot be mixed and matched.

The EcoFlow Power Kit serves as a seamless plug-and-play off-grid power solution, complete with all necessary cables to link your components and charging sources. With most cables extending up to 15 feet, solar and alternator charging cables reaching 20 feet, and battery cables typically ranging from 5 to 8 feet, the kit ensures a hassle-free setup for your convenience.

Key Features & Benefits:

  • Plug-and-play for simple assembly
  • Compact, integrated design, all-in-one Power Hub combines 5 components
  • Can support up to 6000W of charging through 4 methods: up to 4800W solar, 4800W alternator, 3000W shore power, and 1800W Smart Generator input.
  • Supports any 120VAC RV air conditioner, some 12VDC A/Cs, many 24VDC A/Cs, and any 48VDC RV air conditioner (with use of the 48V A/C cable)

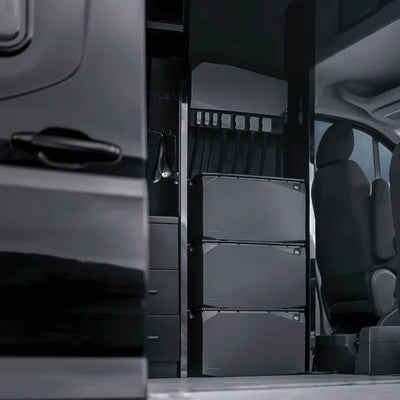

  • Save space with stackable batteries
  • 48V system, a safer, smaller power solution
  • Real-time and remote smart controls

This 5kWh Power Kit is equivalent to ~390Ah @ 12 volts. It comes with 1 x 5kWh LiFePO4 batteries. Links to other EcoFlow Power Kits are below:



SPECIFICATIONS

5KWH LFP BATTERY:

  • Capacity 5120Wh (51.2V, 100Ah)
  • Cell Chemistry Lithium Iron Phosphate
  • Cycle Life ~3000 Cycles up to 80% Capacity
  • Net weight (lbs) 90 (kg) 41
  • Dimension (cm) 30x50x26cm (Height x Width x Depth)
  • Protection Level IP54
  • Storage Temperature (F) -4°F–140°F / (C) -20°C–60°C
  • Operating Temperature (F) -4°F-122°F / (C) -20℃-60℃
  • Tests and Certifications UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE

POWER HUB:

  • Net weight (lbs) 31 (kg) 14
  • Dimension (cm) 30 x 48 x 14 cm (Height x Width x Depth)
  • Wi-Fi ✓
  • Bluetooth ✓
  • Mobile App ✓
  • AC Main Output/Frequency Pure Sine Wave, 3600W (Surge 7200W), 230V, 50Hz/60Hz
  • DC Main Output 13.6V/70A 1000W Max: 26.4V/60A. 1600W Max
  • AC Main Input X-Stream Fast Charging 3000W Max, 13A Max
  • AC Main Input Voltage/Frequency 220-240V, 50Hz/60Hz
  • Solar Charging Input 15-150V 30A, 1600W Max
  • Alternator Charging Input 13V-60V, 60A, 1000W Max
  • Operating Temperature -25℃-60℃
  • Charge Temperature -25℃-60℃
  • Discharge Temperature -25℃-60℃
  • Storage Temperature -25℃-60℃
  • Tests and Certifications UL Standard, FCC,ICES

POWER KIT CONSOLE:

  • Touch Screen (Diagonal Measurement) 7 Inch (6x3.4in) (Width x Height)
  • Power Supply Voltage 12 VDC
  • Operating Temperature (C) -20℃-60℃
  • Operating Temperature (F) -4°F-140°F
  • Dimension (cm) 113.3x204.5x22.35mm (Height x Width x Depth)
  • Net Weight (kg) 0.45
  • Tests and Certifications UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC

AC/DC SMART DISTRIBUTION PANEL:

  • AC Main Input 16A Max. 230V, 3600W
  • DC Main Input 70A Max
  • AC Output 6 AC Positions, 10A Max Each
  • DC Output 12 Fused DC Positions (6 Positions Controllable via Power Kit Console & App)
  • Operating Temperature (C) -25℃-60℃ / (F) -13°F-140°F
  • Dimensions 8.3x13.9x3.9in (Height x Width x Depth)
  • Net Weight (kg) 2.6
  • Protection Level IP21
  • Tests and Certifications UL Standard, FCC,PSE


User Manuals:



Weight 90 lbs (41 kg)
H x W x D 30cm x 50cm x 26cm

Weight 90 lbs (41 kg)
H x W x D 30cm x 50cm x 26cm
Capacity 5120Wh (51.2V,100Ah)
