Rated 4.0 out of 5
Based on 1 review
Features
  • Dead simple plug and play installation
  • Offers huge power specs compared to competitor options; four ways to charge (solar, alternator, shore power, smart generator).
  • Expandable, stackable batteries; compact, integrated design with an all-in-one inverter hub.
Regular price $7,760.00
/
Shipping calculated at checkout.
  • In stock, ready to ship

Victron vs. Ecoflow? Watch this video to find out what is right for you.




Seeking a straightforward solution for setting up your camper van's electrical system? Meet the EcoFlow Power Kit (4 kWh) – the first-of-its-kind integrated, plug-and-play off-grid power solution tailored specifically for camper vans, motorhomes, trailers, and all types of RVs.

EcoFlow has crafted a streamlined, scalable power system comprising four integral components:

  1. EcoFlow Power Hub: This includes a powerful 3600W pure sine inverter-charger with a staggering max AC output of 7200W, dual MPPT solar charge controllers, a DC/DC converter, DC/DC battery charger, and user-friendly plug-in input/output ports for solar, alternator, battery, and generator charging.

  2. EcoFlow Power Kit Console: Featuring a 7" full-color LCD touchscreen, this console provides seamless control and monitoring of all electrical system inputs and outputs. Users can easily toggle DC and AC inputs on and off while keeping a real-time check on the remaining battery capacity.

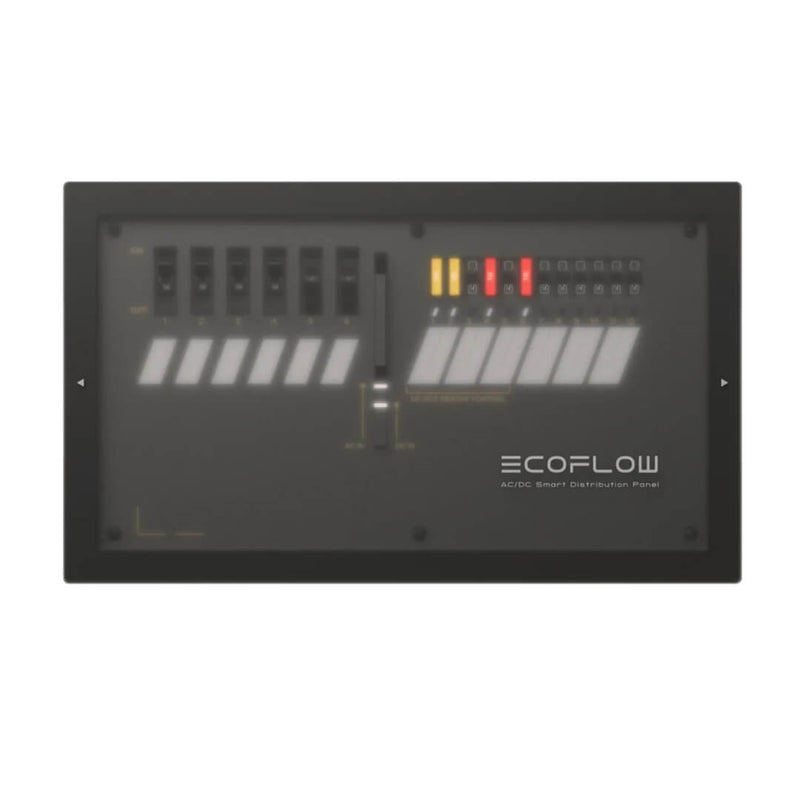

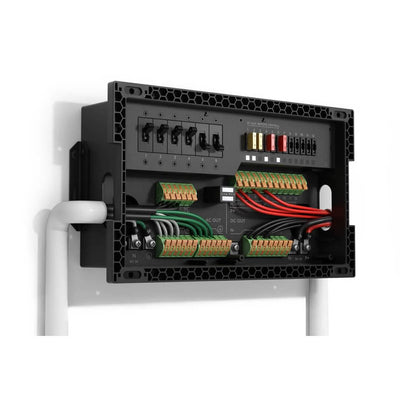

  3. EcoFlow AC/DC Distribution Panel: Comprising three essential components, this panel is meticulously designed for 6 AC circuits and 12 DC circuits. It boasts a transparent exterior faceplate, a removable interior face panel, and a deep connection box equipped with knockouts and WAGO-style circuit connectors.

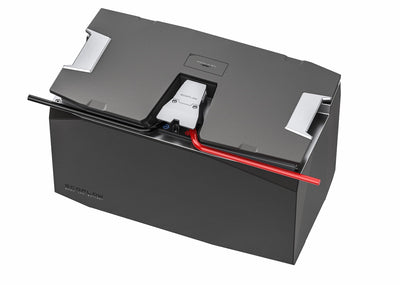

  4. EcoFlow Battery: The 48-volt lithium EcoFlow batteries are available in 2 kWh or 5 kWh sizes. These durable lithium iron phosphate (LiFePO4) batteries can operate within a temperature range from -4°F to 122°F, thanks to their built-in auto heating. A 4 kWh EcoFlow Power Kit typically includes two 2 kWh batteries. It's crucial to note that you have the flexibility to use either one to three 2 kWh or 5 kWh batteries in your power system, but the two sizes cannot be mixed and matched.

Moreover, the EcoFlow Power Kit stands as a hassle-free plug-and-play off-grid power solution, complete with all necessary cables to seamlessly connect the components and charging sources. Most cables extend to 15 feet, with solar and alternator charging cables at 20 feet, and battery cables typically ranging from 5 to 8 feet.

This 4kWh Power Kit is equivalent to ~315Ah at 12 volts. It comes with 2 x 2kWh LiFePO4 batteries. Links to other EcoFlow Power Kits are below:

Key Features & Benefits:

  • Plug-and-play for simple assembly
  • Compact, integrated design, all-in-one Power Hub combines 5 components
  • Can support up to 6000W of charging through 4 methods: up to 4800W solar, 4800W alternator, 3000W shore power, and 1800W Smart Generator input.
  • Supports any 120VAC RV air conditioner, some 12VDC A/Cs, many 24VDC A/Cs, and any 48VDC RV air conditioner (with use of the 48V A/C cable)
  • Save space with stackable batteries
  • 48V system, a safer, smaller power solution
  • Real-time and remote smart controls

SPECIFICATIONS

4KWH LFP BATTERY:

  • Capacity 2048Wh (51.2V, 40Ah)
  • Cell Chemistry Lithium Iron Phosphate
  • Cycle Life ~3000 Cycles up to 80% Capacity
  • Net weight (lbs) 37 (kg) 16.8
  • Dimension (cm) 28.4x34.8x19.8cm (Height x Width x Depth)
  • Protection Level IP54
  • Storage Temperature (F) -4°F–140°F / (C) -20°C–60°C
  • Operating Temperature (F) -4°F-122°F / (C) -20℃-60℃
  • Tests and Certifications UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE

POWER HUB:

  • Net weight (lbs) 31 (kg) 14
  • Dimension (cm) 30 x 48 x 14 cm (Height x Width x Depth)
  • Wi-Fi ✓
  • Bluetooth ✓
  • Mobile App ✓
  • AC Main Output/Frequency Pure Sine Wave, 3600W (Surge 7200W), 230V, 50Hz/60Hz
  • DC Main Output 13.6V/70A 1000W Max: 26.4V/60A. 1600W Max
  • AC Main Input X-Stream Fast Charging 3000W Max, 13A Max
  • AC Main Input Voltage/Frequency 220-240V, 50Hz/60Hz
  • Solar Charging Input 15-150V 30A, 1600W Max
  • Alternator Charging Input 13V-60V, 60A, 1000W Max
  • Operating Temperature -25℃-60℃
  • Charge Temperature -25℃-60℃
  • Discharge Temperature -25℃-60℃
  • Storage Temperature -25℃-60℃
  • Tests and Certifications UL Standard, FCC,ICES

POWER KIT CONSOLE:

  • Touch Screen (Diagonal Measurement) 7 Inch (6x3.4in) (Width x Height)
  • Power Supply Voltage 12 VDC
  • Operating Temperature (C) -20℃-60℃
  • Operating Temperature (F) -4°F-140°F
  • Dimension (cm) 113.3x204.5x22.35mm (Height x Width x Depth)
  • Net Weight (kg) 0.45
  • Tests and Certifications UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC

AC/DC SMART DISTRIBUTION PANEL:

  • AC Main Input 16A Max. 230V, 3600W
  • DC Main Input 70A Max
  • AC Output 6 AC Positions, 10A Max Each
  • DC Output 12 Fused DC Positions (6 Positions Controllable via Power Kit Console & App)
  • Operating Temperature (C) -25℃-60℃ / (F) -13°F-140°F
  • Dimensions 8.3x13.9x3.9in (Height x Width x Depth)
  • Net Weight (kg) 2.6
  • Protection Level IP21
  • Tests and Certifications UL Standard, FCC,PSE


    User Manuals:



    Weight 37 lbs (16.8 kg)
    H x W x D 28.4cm x 34.8cm x 19.8cm

    Weight 37 lbs (16.8 kg)
    H x W x D 28.4cm x 34.8cm x 19.8cm
    Capacity 2048Wh (51.2V,40Ah)

    Designed for camper vans, motorhomes, trailers, and RVs of all types.
