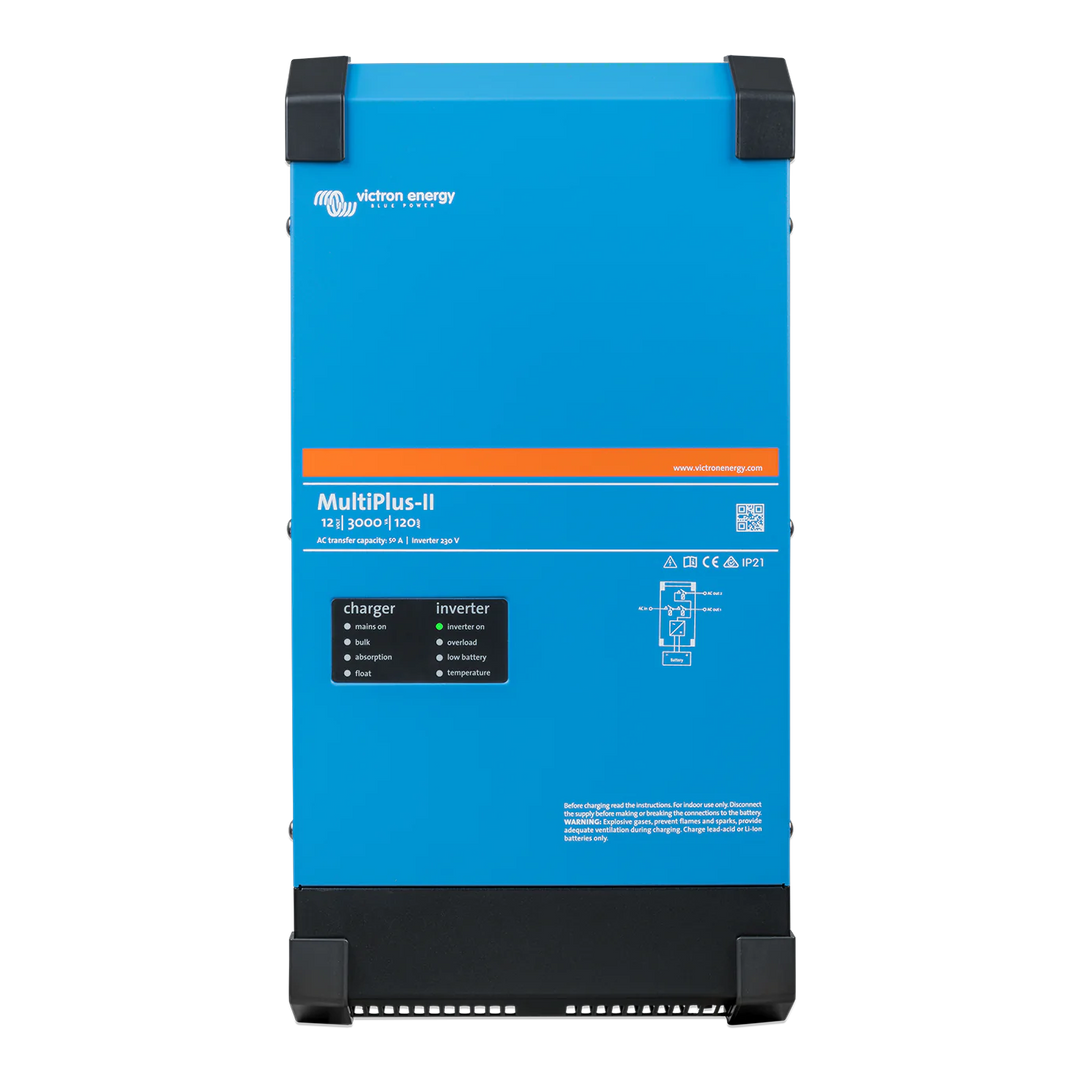

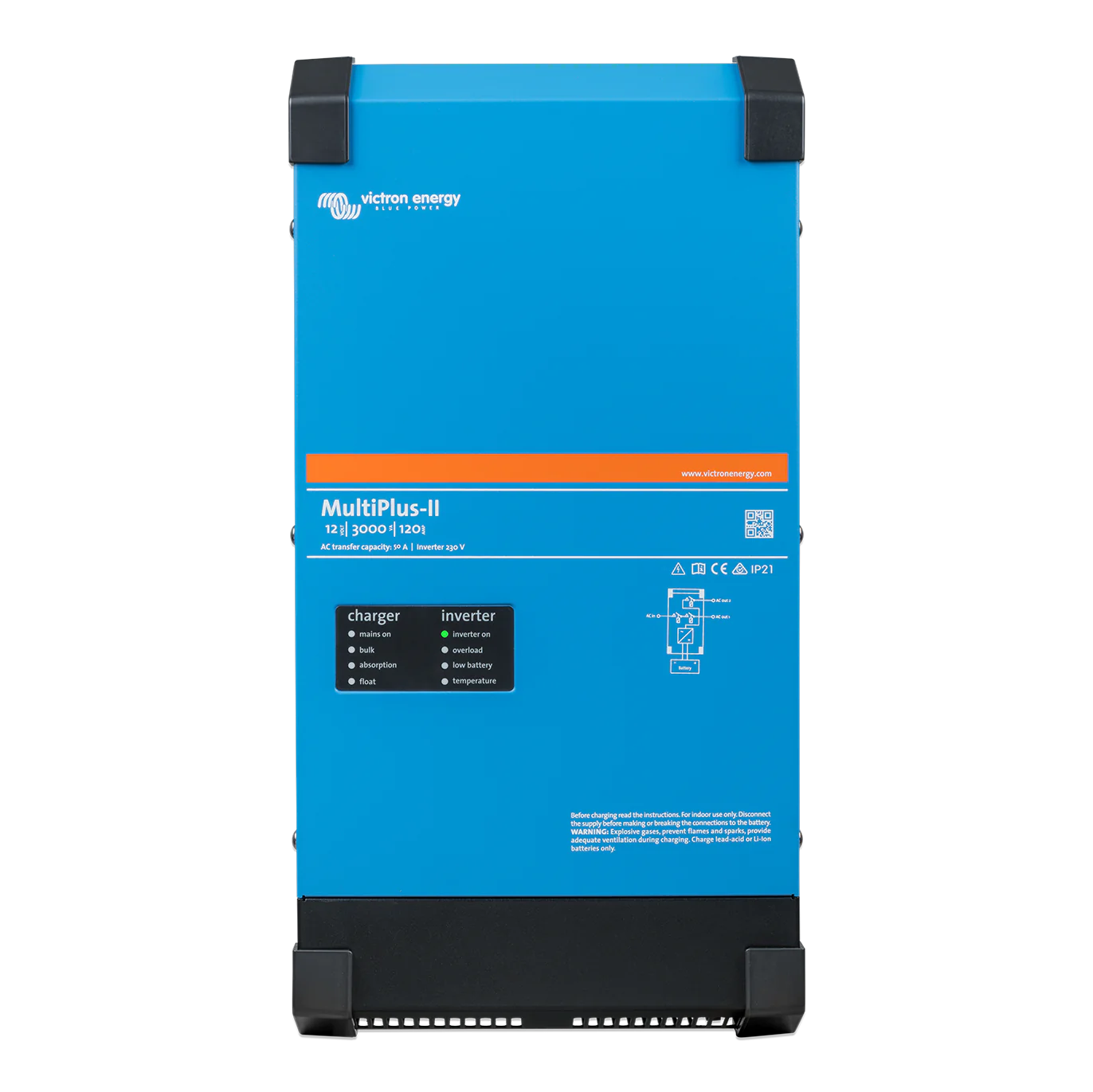

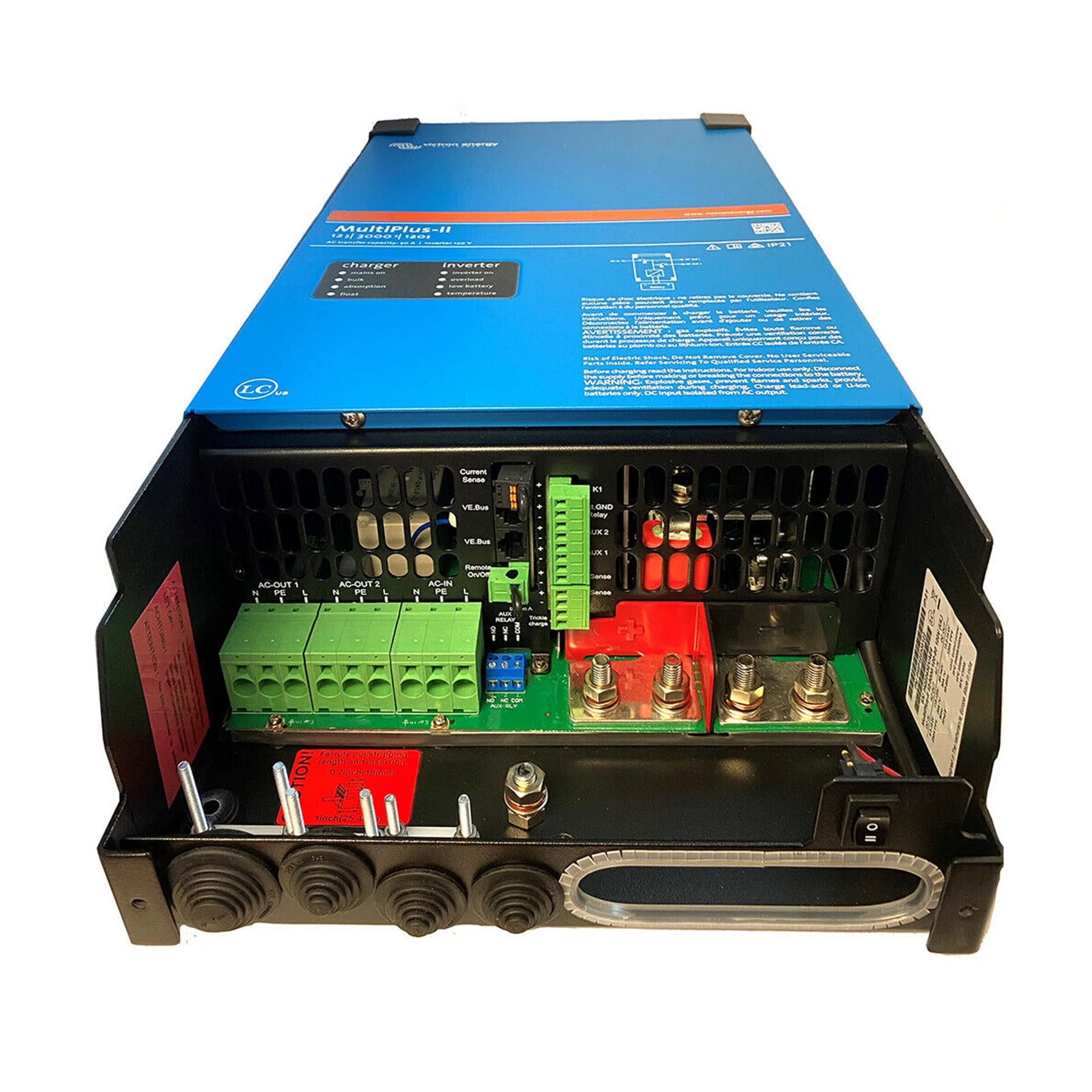

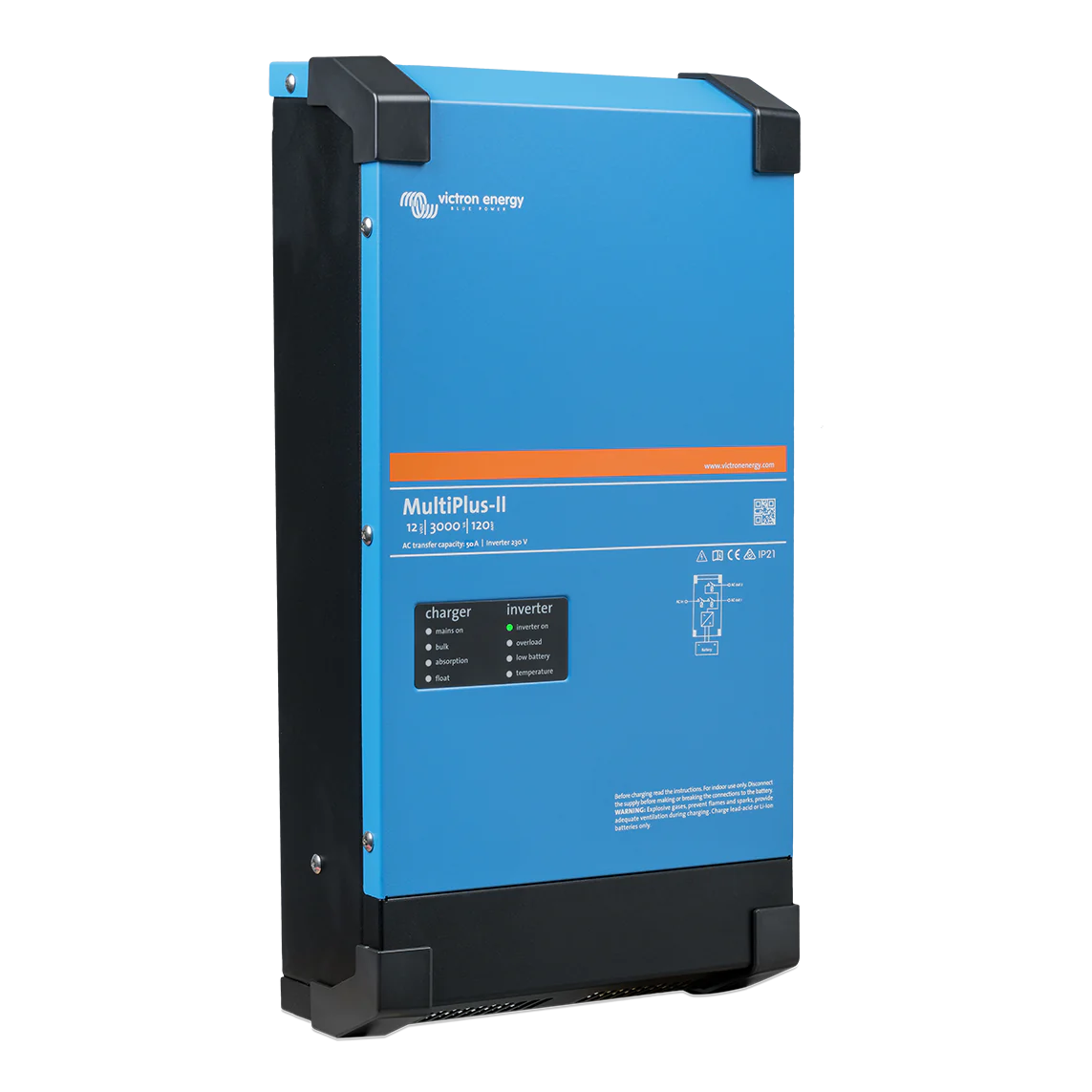

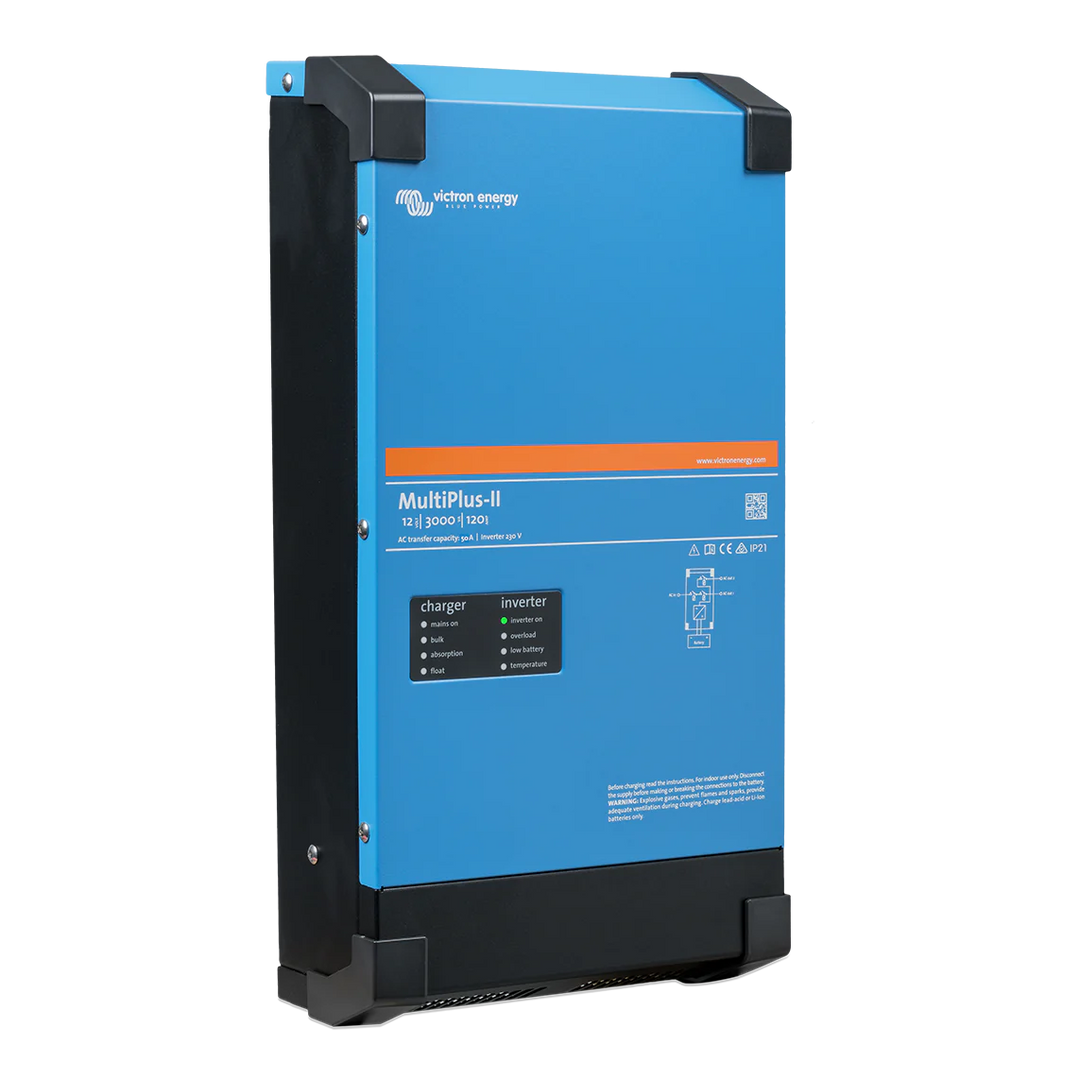

Victron II 12/3000/120-50 MultiPlus-II Inverter Charger 120V
Victron II 12/3000/120-50 MultiPlus-II Inverter Charger 120V
Features
- PowerAssist: Prevents AC source overloads by boosting power when needed.
- UPS Function: Switches to battery power in under 20ms during grid failures.
- Flexible Monitoring: Supports multiple setups and remote access via Victron VRM.
Regular price$1,48500
$1,485.00
/
- In stock, ready to ship
The MultiPlus-II combines the functionalities of the MultiPlus and MultiGrid units, offering exceptional versatility. It includes all the features of the MultiPlus, with the added benefit of an external current transformer option for optimizing self-consumption using external current sensing (up to 32A). Additionally, it incorporates all the MultiGrid capabilities, along with an expanding list of country-specific certifications and built-in anti-islanding protection.
Key Features:
- PowerAssist: Prevents overloading of AC sources like generators by adjusting battery charging and providing a power boost when necessary.
- Uninterrupted AC Power (UPS Function): Seamlessly switches to battery power in less than 20 milliseconds during grid or power source failures, ensuring uninterrupted operation of sensitive equipment.
- Energy Storage Systems (ESS): Offers flexibility for integration with MPPT Solar Chargers and Grid-tied PV Inverters, making it a powerful solution for managing solar energy or grid-tied power systems.
- Solar Energy Solution: Ideal for off-grid and grid-connected solar systems, seamlessly integrating with solar charger controllers and grid-tie inverters for continuous power availability.
Additional Features:
- Dual AC Outputs: The primary output ensures rapid power transfer during grid failures, keeping sensitive electronics running with less than 20 milliseconds delay. The secondary output is dedicated to non-battery-discharging loads like water heaters.
- Parallel Operation: Supports parallel, split-phase, and three-phase operation. Up to 6 units can be connected to deliver higher power output and charging capacity.
- On-Site Configuration & Monitoring: Easily configure and monitor your system with VEConfigure software for seamless setup and management.
- Remote Access: Connect with the Victron Remote Management (VRM) website for remote monitoring, configuration, and operational data storage.
| Weight | 19.8 kg ( 43.6 lbs ) |
| Dimensions | 5.8 x 22.75 x 10.9 in |
| Input Voltage | 120 V |
| Output Voltage | 120 V |
| Charge Current | 120 A |
| DC System Voltage | 12 V |
| Output Power | 2400 W |
